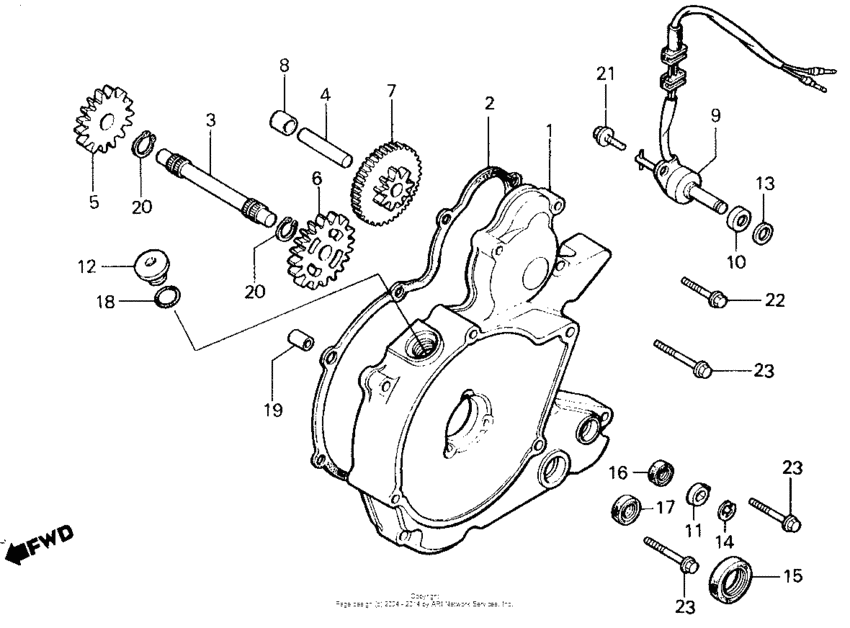

Left Crankcase Cover Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-HB6-670
Cover, l. crankcase
|
11341-HB6-670 |
— | ||
|
2
|
2
11396-HB6-306
Gasket, l. cover
|
11396-HB6-306 |
— | ||
|
3
|
3
28115-HB6-010
Shaft a,starting
|
28115-HB6-010 |
— | ||
|
4
|
4
28116-HB6-000
Shaft b
|
28116-HB6-000 |
— | ||
|
5
|
5
28117-HB6-000
Gear a (18t)
|
28117-HB6-000 |
— | ||
|
6
|
6
28118-HB6-000
Gr b,strg idle
|
28118-HB6-000 |
— | ||
|
7
|
7
28119-HB6-000
Gear,strg reduct
|
28119-HB6-000 |
— | ||
|
8
|
8
28125-HC3-000
Collar 10x11
Use up to Engine SN 2302281 |
28125-HC3-000 |
— | ||
|
9
|
9
35759-HB6-003
Sw.assy change
|
35759-HB6-003 |
— | ||
|
10
|
10
35760-HB6-000
Guide, change switch
|
35760-HB6-000 |
— | ||
|
11
|
11
35762-HB3-000
Indicator, neutral
|
35762-HB3-000 |
— | ||
|
12
|
12
90084-471-000 Cap, alternator |
90084-471-000 |
US $7.84 |
||
|
13
|
13
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
14
|
14
90605-230-000 Circlip, 5mm |
90605-230-000 |
from US $2.15 |
||
|
15
|
15
91202-HB3-003 Oil seal (22x32x7) |
91202-HB3-003 |
from US $5.20 |
||
|
16
|
16
91204-HB3-004 Oil seal (9x18x5) |
91204-HB3-004 |
from US $3.70 |
||
|
17
|
17
91205-KF0-003 Oil seal, 12x20x5 (arai) |
91205-KF0-003 |
from US $2.47 |
||
|
18
|
18
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
19
|
19
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
20
|
20
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
21
|
21
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
22
|
22
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
23
|
23
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
