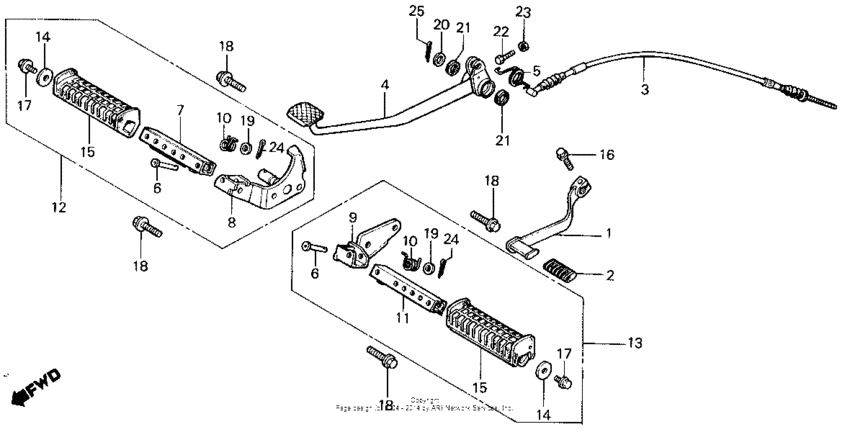

Step + pedal Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-HB6-000
Pedal,gear change
|
24700-HB6-000 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $5.62 |
||
|
3
|
3
43470-HB6-670
Cable,foot brake
|
43470-HB6-670 |
— | ||
|
4
|
4
46500-HB6-000
Pedal comp.,brake
|
46500-HB6-000 |
— | ||
|
5
|
5
46514-HB6-010
Spg,brake pedal
|
46514-HB6-010 |
— | ||
|
6
|
6
50603-KL4-000 Pin, step bar join |
50603-KL4-000 |
from US $5.25 |
||
|
7
|
7
50610-HB6-010
Bar assy., r. step
|
50610-HB6-010 |
— | ||
|
8
|
8
50615-HB6-000
Plate, r. step
|
50615-HB6-000 |
— | ||
|
9
|
9
50616-HB6-000
Plate, l. step
|
50616-HB6-000 |
— | ||
|
10
|
10
50617-HB6-000
Spring,step retur
|
50617-HB6-000 |
— | ||
|
11
|
11
50620-HB6-010
Bar assy., l. step
|
50620-HB6-010 |
— | ||
|
12
|
12
50630-HB6-010
Arm assy., r. step
|
50630-HB6-010 |
— | ||
|
13
|
13
50640-HB6-010
Arm assy., l. step
|
50640-HB6-010 |
— | ||
|
14
|
14
50651-HB6-000
Stopper, step rubber
|
50651-HB6-000 |
— | ||
|
15
|
15
50661-HB6-000
Rubber,step
|
50661-HB6-000 |
— | ||
|
16
|
16
90118-968-000 Bolt, flange (6x20) |
90118-968-000 |
from US $2.66 |
||
|
17
|
17
90156-964-670
Bolt-washer (8x12)
|
90156-964-670 |
— | ||
|
18
|
18
90162-HB6-000
Bolt,flange,12x40
|
90162-HB6-000 |
— | ||
|
19
|
19
90401-430-000 Washer, 10.2mm |
90401-430-000 |
from US $2.52 |
||
|
20
|
20
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $2.22 |
||
|
21
|
21
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
22
|
22
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
23
|
23
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
24
|
24
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
25
|
25
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
25
|
25
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
