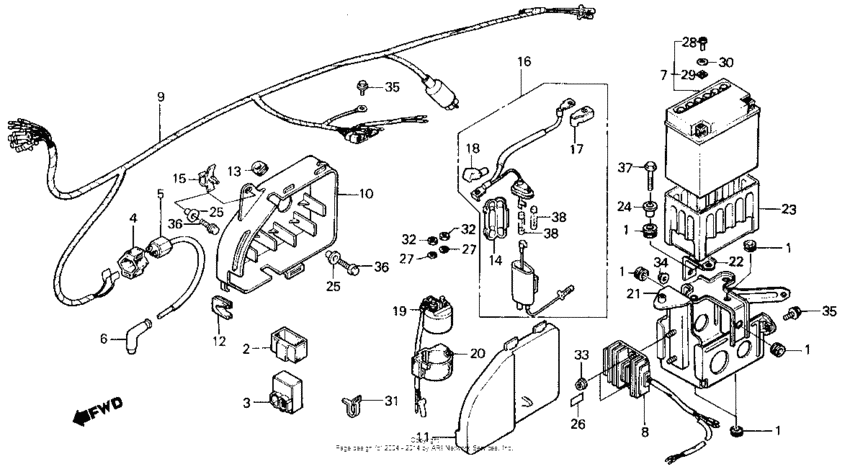

Wire harness Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $3.77 |
||
|
2
|
2
30401-HB6-000 Rubber |
30401-HB6-000 |
from US $4.44 |
||
| replacement | |||||
|
2
|
2
30401-HB6-010 CUSHION |
30401-HB6-010 |
from US $4.29 |
||
|
3
|
3
30410-HB6-000
Unit comp.cdi
|
30410-HB6-000 |
— | ||
|
4
|
4
30506-VM6-000
Suspension
|
30506-VM6-000 |
— | ||
|
5
|
5
30510-KJ2-405 Coil, ignition |
30510-KJ2-405 |
from US $58.34 |
||
|
6
|
6
30700-MA0-163 Cap assy. |
30700-MA0-163 |
from US $24.71 |
||
|
7
|
7
31500-HF1-678AH Battery (ytx12-bs) |
31500-HF1-678AH |
from US $128.45 |
||
| replacement | |||||
|
7
|
7
31500-HS0-AK1AH BATTERY (YTX12-BS) |
31500-HS0-AK1AH |
US $128.45 |
||
|
8
|
8
31600-HC3-900
Rectifier, regulator
|
31600-HC3-900 |
— | ||
|
9
|
9
32100-HB6-010
Harness,wire
|
32100-HB6-010 |
— | ||
|
10
|
10
32104-HB6-010
Case electric
|
32104-HB6-010 |
— | ||
|
11
|
11
32105-HB6-670
Lid,electric
|
32105-HB6-670 |
— | ||
|
12
|
12
32106-HB6-010
Rubber a,electric
|
32106-HB6-010 |
— | ||
|
13
|
13
32107-HB6-000
Rubber b,electric
|
32107-HB6-000 |
— | ||
|
14
|
14
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
14
|
14
32113-230-004 Case, fuse connector (furukawa) |
32113-230-004 |
US $3.85 |
||
|
15
|
15
32171-GJ1-003 Clip, wire harness |
32171-GJ1-003 |
from US $2.22 |
||
|
16
|
16
32401-HB6-010
Cable, battery relay
|
32401-HB6-010 |
— | ||
|
17
|
17
32412-HB3-000 Cover |
32412-HB3-000 |
US $4.62 |
||
|
18
|
18
32416-HB6-000
Cover
|
32416-HB6-000 |
— | ||
|
19
|
19
35850-HB3-771
Switch assy.,star
|
35850-HB3-771 |
— | ||
|
20
|
20
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
21
|
21
50326-HB6-010
Box set,battery
|
50326-HB6-010 |
— | ||
|
22
|
22
50328-HB6-000
Holder, battery box
|
50328-HB6-000 |
— | ||
|
23
|
23
50334-HB6-000
Rubber, battery
|
50334-HB6-000 |
— | ||
|
24
|
24
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
24
|
24
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.59 |
||
|
25
|
25
84706-415-000 Collar |
84706-415-000 |
from US $3.18 |
||
|
26
|
26
87136-HB3-000
Label (15a)
|
87136-HB3-000 |
— | ||
|
27
|
27
90052-ZA0-800 Washer, spring, 6mm |
90052-ZA0-800 |
from US $0.74 |
||
|
28
|
28
90122-HA0-007 Bolt, battery terminal |
90122-HA0-007 |
from US $2.66 |
||
|
29
|
29
90306-HA0-681 Nut, battery terminal |
90306-HA0-681 |
from US $2.22 |
||
|
30
|
30
90501-413-950 Washer, battery terminal |
90501-413-950 |
US $2 |
||
|
32
|
32
94002-063900S Nut, hex., 6mm |
94002-063900S |
from US $0.52 |
||
|
33
|
33
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
34
|
34
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
35
|
35
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
35
|
35
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
35
|
35
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
36
|
36
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
37
|
37
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
38
|
38
98200-21500 Fuse b15A |
98200-21500 |
from US $0.59 |
||
