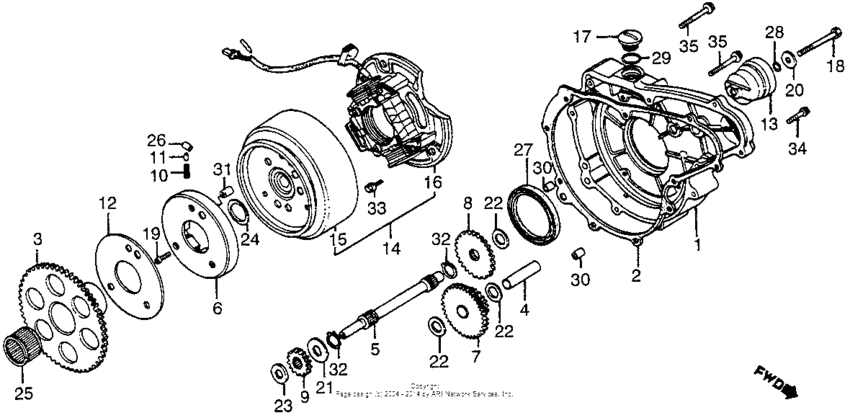

Left crankcase cover + alternator Diagram Honda ATC ATC200
- Model code
- ATC200E A
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Frame
- JH3TB051*CC133783 - JH3TB051*CC174752
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-958-680
Cover, l. crankcase
|
11341-958-680 |
— | ||
|
2
|
2
11396-KE4-771
Gasket, l
|
11396-KE4-771 |
— | ||
|
3
|
3
28110-958-680 Gear, starter driven |
28110-958-680 |
US $126.02 |
||
|
4
|
4
28115-958-680
Shaft a,idle
|
28115-958-680 |
— | ||
|
5
|
5
28116-958-680
Shaft b star idle
|
28116-958-680 |
— | ||
|
6
|
6
28120-426-000
Clutch outer
|
28120-426-000 |
— | ||
|
7
|
7
28120-958-680
Gear,a,start idle
|
28120-958-680 |
— | ||
|
8
|
8
28123-958-680
Gear,b,start idle
|
28123-958-680 |
— | ||
|
9
|
9
28124-958-680
Gear,c,start idle
|
28124-958-680 |
— | ||
|
10
|
10
28125-426-000 Spring |
28125-426-000 |
from US $2.22 |
||
|
11
|
11
28126-323-000 Cap |
28126-323-000 |
from US $4.29 |
||
|
12
|
12
28128-958-680
Plate
|
28128-958-680 |
— | ||
|
13
|
13
28432-958-315
Boss, recoil pulley
|
28432-958-315 |
— | ||
|
14
|
14
31100-958-681
Alternator assy.
|
31100-958-681 |
— | ||
|
15
|
15
31110-VM5-004
Rotor
|
31110-VM5-004 |
— | ||
|
16
|
16
31120-958-681
Stator Comp
|
31120-958-681 |
— | ||
| replacement | |||||
|
16
|
16
31120-968-415
Stator
|
31120-968-415 |
— | ||
|
16
|
16
31120-968-415
Stator
|
31120-968-415 |
— | ||
|
17
|
17
90081-958-680
Cap, ignition timing
|
90081-958-680 |
— | ||
|
18
|
18
90083-958-680
Bolt (8mm)
|
90083-958-680 |
— | ||
|
19
|
19
90085-413-781 Bolt, socket (6mm) |
90085-413-781 |
from US $4 |
||
|
20
|
20
90426-437-000 Washer, rotor setting |
90426-437-000 |
from US $6.51 |
||
|
21
|
21
90429-958-681
Plate thrust spl
|
90429-958-681 |
— | ||
|
22
|
22
90452-166-600 Washer, thrust, 12mm |
90452-166-600 |
from US $2.44 |
||
|
23
|
23
90452-187-000 Washer, 10x21 |
90452-187-000 |
from US $2.89 |
||
|
24
|
24
90461-883-810
Washer, thrust, 20mm
|
90461-883-810 |
— | ||
|
25
|
25
91021-689-902
Bearing (20x26x17)
|
91021-689-902 |
— | ||
|
26
|
26
91101-377-000 Roller (10.2x11.5) |
91101-377-000 |
from US $2.59 |
||
|
27
|
27
91204-968-013 Oil seal (45x60x9) |
91204-968-013 |
from US $13.41 |
||
|
28
|
28
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
29
|
29
91310-PH3-003 O-ring18X2.4 |
91310-PH3-003 |
from US $1.70 |
||
|
29
|
29
91333-422-003
O-ring (17.8x2.4)
|
91333-422-003 |
— | ||
| replacement | |||||
|
29
|
29
91310-PH3-003 O-ring18X2.4 |
91310-PH3-003 |
from US $1.70 |
||
|
30
|
30
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
31
|
31
94303-08140 Dowel pin8X14 |
94303-08140 |
from US $0.89 |
||
|
32
|
32
94510-15000 CirclipEXTERNAL, 15MM |
94510-15000 |
from US $0.44 |
||
|
33
|
33
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
34
|
34
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
||
|
35
|
35
96001-0608007 Bolt, flange (6x80) |
96001-0608007 |
from US $0.89 |
||
|
35
|
35
96001-0608000 Bolt, flange (6x80) |
96001-0608000 |
from US $0.89 |
||
