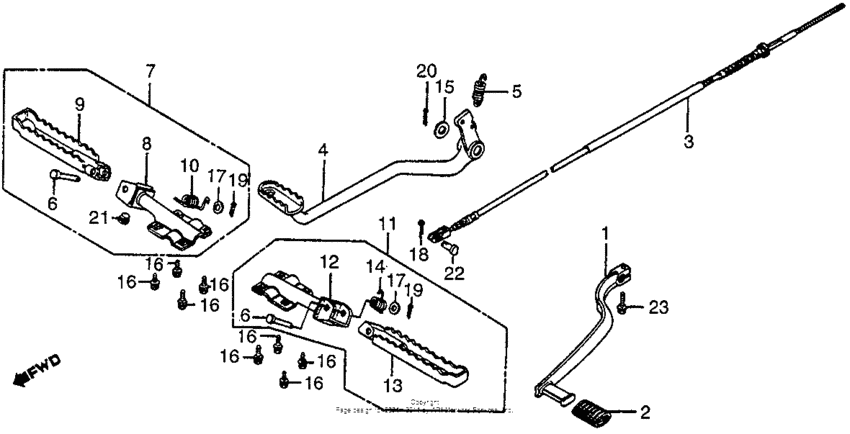

Step + pedal Diagram Honda ATC ATC200
- Model code
- ATC200E A
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Frame
- JH3TB051*CC133783 - JH3TB051*CC174752
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-958-681
Pedal gear change
|
24700-958-681 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $5.62 |
||
|
3
|
3
43470-VM3-405
Cable, brake
|
43470-VM3-405 |
— | ||
|
3
|
3
43470-958-680
Cable,foot brake
|
43470-958-680 |
— | ||
| replacement | |||||
|
3
|
3
43470-VM3-405
Cable, brake
|
43470-VM3-405 |
— | ||
|
4
|
4
46500-958-680
Pedal comp.,brake
|
46500-958-680 |
— | ||
|
5
|
5
46514-VM3-000
Spring, brake pedal
|
46514-VM3-000 |
— | ||
|
6
|
6
50603-964-000
Pin,step joint
|
50603-964-000 |
— | ||
|
7
|
7
50610-969-000
Arm assy., r. step
|
50610-969-000 |
— | ||
|
8
|
8
50613-958-681
Arm, r. footpeg
|
50613-958-681 |
— | ||
|
9
|
9
50616-969-000
Footpeg, r.
|
50616-969-000 |
— | ||
|
10
|
10
50617-958-680
Spg.r,step return
|
50617-958-680 |
— | ||
|
11
|
11
50640-969-000
Arm l.step
|
50640-969-000 |
— | ||
|
12
|
12
50643-958-681
Arm, l. footpeg
|
50643-958-681 |
— | ||
|
13
|
13
50646-969-000
Footpeg, l.
|
50646-969-000 |
— | ||
|
14
|
14
50647-958-680
Spg,l,step return
|
50647-958-680 |
— | ||
|
15
|
15
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $1.92 |
||
|
16
|
16
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
17
|
17
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
18
|
18
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
19
|
19
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
20
|
20
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
20
|
20
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
20
|
20
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
21
|
21
9501163000 Rubber c, stand stopper |
9501163000 |
from US $1.55 |
||
|
22
|
22
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
23
|
23
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
