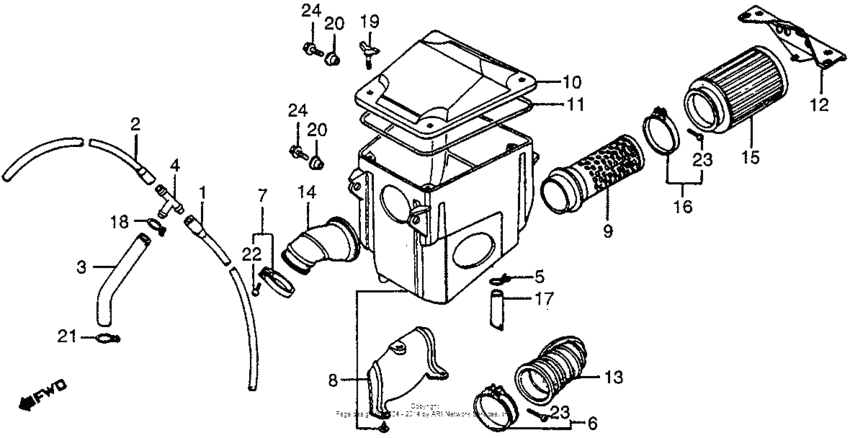

Air cleaner Diagram Honda ATC ATC200
- Model code
- ATC200E A
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB051*DC203548 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15761-958-000
Tube a, breather
|
15761-958-000 |
— | ||
|
2
|
2
15762-958-681
Tube b, breather
|
15762-958-681 |
— | ||
|
3
|
3
15763-958-680
Tube c,breather
|
15763-958-680 |
— | ||
|
4
|
4
15772-376-000 Joint |
15772-376-000 |
from US $9.62 |
||
|
5
|
5
15772-500-010 Clip, breather tube |
15772-500-010 |
from US $4.44 |
||
|
6
|
6
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
7
|
7
16223-317-000
Band, insulator
|
16223-317-000 |
— | ||
|
8
|
8
17210-958-680
Housing, air cleaner
|
17210-958-680 |
— | ||
|
9
|
9
17211-958-680
Body,air cleaner
|
17211-958-680 |
— | ||
|
10
|
10
17217-958-681
Lid,air/c case
|
17217-958-681 |
— | ||
|
11
|
11
17219-958-680
Seal air/c case
|
17219-958-680 |
— | ||
|
12
|
12
17221-958-680
Stay air/c elemet
|
17221-958-680 |
— | ||
|
13
|
13
17252-958-680
Tube air/c inlet
|
17252-958-680 |
— | ||
|
14
|
14
17253-958-682
Tube,connector
|
17253-958-682 |
— | ||
|
15
|
15
17254-958-013 Element, air cleaner |
17254-958-013 |
from US $25.98 |
||
|
16
|
16
9501856200 Band (56) |
9501856200 |
from US $3.26 |
||
|
17
|
17
17358-943-000
Tube, drain
|
17358-943-000 |
— | ||
|
18
|
18
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
19
|
19
90143-958-405
Bolt air/c cover
|
90143-958-405 |
— | ||
|
19
|
19
90143-958-680
Bolt,air/c cover
|
90143-958-680 |
— | ||
| replacement | |||||
|
19
|
19
90143-958-405
Bolt air/c cover
|
90143-958-405 |
— | ||
|
20
|
20
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $2.29 |
||
|
21
|
21
90656-579-000 ClipAIR BLEED |
90656-579-000 |
from US $2.16 |
||
|
22
|
22
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
23
|
23
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
