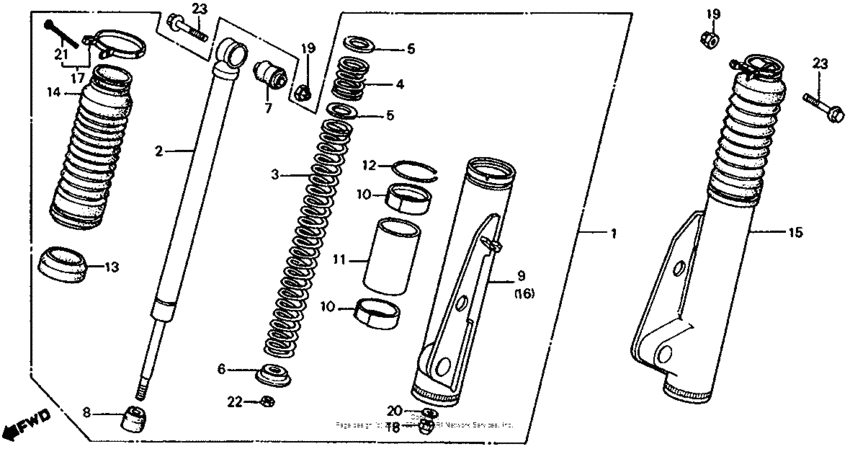

Front shock absorber Diagram Honda ATC ATC200
- Model code
- ATC200ES A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB055*EC307605 - JH3TB055*EC516032
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51200-969-013
Cush,r fr fork
Use up to Frame SN EC385000 |
51200-969-013 |
— | ||
|
2
|
2
51210-958-305
Damper comp,fr
|
51210-958-305 |
— | ||
|
3
|
3
51211-958-681
Spg,a,fr.cushion
|
51211-958-681 |
— | ||
|
4
|
4
51212-958-681
Spg,b,fr.cushion
|
51212-958-681 |
— | ||
|
5
|
5
51213-958-681
Seat,spring
|
51213-958-681 |
— | ||
|
6
|
6
51215-958-681
Seat stopper spg
|
51215-958-681 |
— | ||
|
7
|
7
51216-958-681
Bush,damper
|
51216-958-681 |
— | ||
|
8
|
8
51217-958-681
Rubber,stopper
|
51217-958-681 |
— | ||
|
9
|
9
51220-969-013
Case,r bottom
Use up to Frame SN EC385000 |
51220-969-013 |
— | ||
|
10
|
10
51221-958-683 Guide,fr.forkUse up to Frame SN EC385000 |
51221-958-683 |
from US $12.60 |
||
|
11
|
11
51222-958-681
Collar,distance
|
51222-958-681 |
— | ||
|
12
|
12
51223-958-681
Ring,stopper
|
51223-958-681 |
— | ||
|
13
|
13
51224-958-681
Seal,dust
|
51224-958-681 |
— | ||
|
14
|
14
51231-958-681 Boot,fr.fork |
51231-958-681 |
from US $55.51 |
||
|
15
|
15
51300-958-686
Cushion,l.fr.fork
Use up to Frame SN EC385000 |
51300-958-686 |
— | ||
|
16
|
16
51320-958-686
Case,l bottom
Use up to Frame SN EC385000 |
51320-958-686 |
— | ||
|
17
|
17
51612-430-010 Band, fr. fork boot |
51612-430-010 |
from US $7.31 |
||
|
18
|
18
90301-958-681
Nut,u
|
90301-958-681 |
— | ||
|
19
|
19
90351-268-000 Nut (10mm) |
90351-268-000 |
from US $4.11 |
||
|
20
|
20
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
21
|
21
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
22
|
22
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
23
|
23
95801-1004500 Bolt, flange (10x45) |
95801-1004500 |
from US $0.89 |
