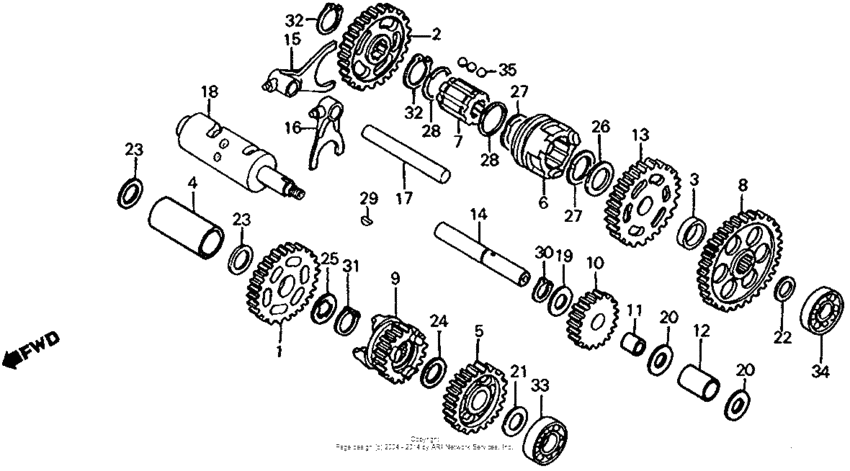

Sub-trans Diagram Honda ATC ATC200
- Model code
- ATC200ES A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB055*EC307605 - JH3TB055*EC516032
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23910-969-000
Gear
|
23910-969-000 |
— | ||
|
2
|
2
23921-969-000
Gear
|
23921-969-000 |
— | ||
|
3
|
3
23922-969-000
Collar,20mm
|
23922-969-000 |
— | ||
|
4
|
4
23924-969-000
Collar (20x25x31.9)
|
23924-969-000 |
— | ||
|
5
|
5
23930-969-000
Gear (30t)
|
23930-969-000 |
— | ||
|
6
|
6
23935-969-000
Slider, reverse
|
23935-969-000 |
— | ||
|
7
|
7
23936-969-000
Colr, reverse slider
|
23936-969-000 |
— | ||
|
8
|
8
23941-969-000
Gear (47t)
|
23941-969-000 |
— | ||
|
9
|
9
23951-969-000
Gear,reverse driv
|
23951-969-000 |
— | ||
|
10
|
10
23961-969-000
Gear, reverse idle
|
23961-969-000 |
— | ||
|
11
|
11
23962-969-000
Bush (15mm)
|
23962-969-000 |
— | ||
|
12
|
12
23963-969-000
Collar (15x21x17.1)
|
23963-969-000 |
— | ||
|
13
|
13
23970-969-000
Gear (30t)
|
23970-969-000 |
— | ||
|
14
|
14
23981-969-000
Shaft
|
23981-969-000 |
— | ||
|
15
|
15
24710-969-000
Fork,revers.miss.
|
24710-969-000 |
— | ||
|
16
|
16
24711-969-000
Fork,trans.g/shif
|
24711-969-000 |
— | ||
|
17
|
17
24712-969-000
Shaft
|
24712-969-000 |
— | ||
|
18
|
18
24721-969-010
Drum,submission
Use up to Engine SN 6080531 |
24721-969-010 |
— | ||
|
19
|
19
90403-969-000
Washer (15mm)
|
90403-969-000 |
— | ||
|
20
|
20
90404-969-000
Wash thrust 15mm
|
90404-969-000 |
— | ||
|
21
|
21
90412-187-000 Washer, thrust, 15mm |
90412-187-000 |
from US $2.74 |
||
|
22
|
22
90452-115-000 Washer, 17mm |
90452-115-000 |
from US $2.22 |
||
|
23
|
23
90453-KA3-710
Washer, thrust, 20x28x1.5
|
90453-KA3-710 |
— | ||
|
24
|
24
90453-427-000
Washer,thrust
|
90453-427-000 |
— | ||
|
25
|
25
90455-107-000 Washer a (20mm) |
90455-107-000 |
from US $2.59 |
||
|
26
|
26
90456-323-000 Washer, thrust, 22mm |
90456-323-000 |
US $3.85 |
||
|
27
|
27
90613-969-003 Ring, double coil |
90613-969-003 |
from US $8.01 |
||
|
28
|
28
90616-969-000 Clip (32.5mm) |
90616-969-000 |
from US $2.24 |
||
|
29
|
29
90741-969-000 Key,wodruf,16x12 |
90741-969-000 |
US $3.89 |
||
|
30
|
30
94510-15000 CirclipEXTERNAL, 15MM |
94510-15000 |
from US $0.44 |
||
|
31
|
31
94510-20000 CirclipEXTERNAL, 20MM |
94510-20000 |
from US $0.55 |
||
|
32
|
32
9451025000 Circlip, external, 25mm |
9451025000 |
from US $0.59 |
||
|
33
|
33
9614062020 Bearing (6202u) |
9614062020 |
from US $6.51 |
||
|
34
|
34
96140-6203000 Bearing, radial ball, 6203u |
96140-6203000 |
from US $7.25 |
||
|
35
|
35
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
