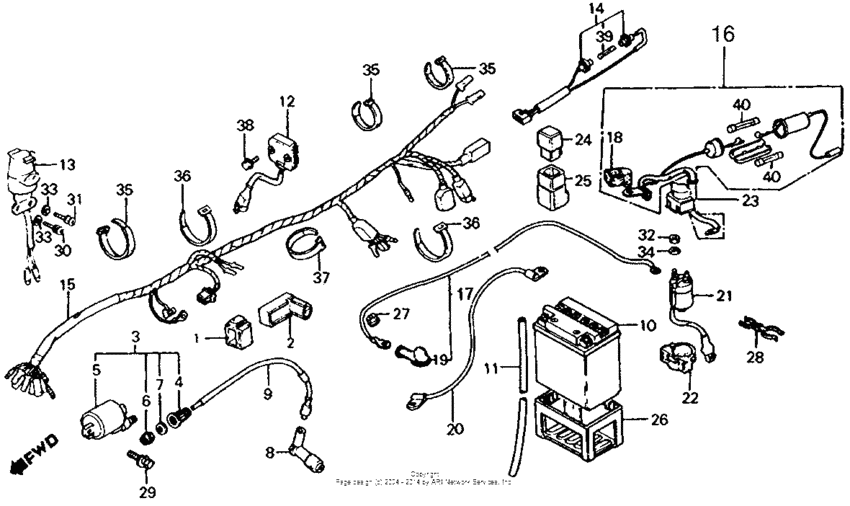

Wire harness + rectifier Diagram Honda ATC ATC200
- Model code
- ATC200ES A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB055*EC307605 - JH3TB055*EC516032
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-KB4-000 Cushion |
30401-KB4-000 |
from US $5.18 |
||
|
2
|
2
30410-969-013 C.d.i.unit |
30410-969-013 |
from US $164.56 |
||
|
3
|
3
30500-VM3-405 Coil assy (cdi)ig |
30500-VM3-405 |
US $100.68 |
||
|
4
|
4
30501-428-003 Cap, screw |
30501-428-003 |
US $4.74 |
||
|
5
|
5
30510-167-003
Coil, ignition
|
30510-167-003 |
— | ||
|
6
|
6
30502-428-003 Seal, rubber |
30502-428-003 |
US $2.59 |
||
|
7
|
7
30503-428-003 Washer, cap |
30503-428-003 |
US $2.66 |
||
|
8
|
8
30700-152-163 Cap assy. |
30700-152-163 |
from US $17.41 |
||
| replacement | |||||
|
8
|
8
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
9
|
9
30750-196-P00
Cord comp,h/t
|
30750-196-P00 |
— | ||
|
10
|
10
31500-958-682AH
Battery (yb14a-a2)
|
31500-958-682AH |
— | ||
|
11
|
11
31502-VM3-000
Pipe, breather
|
31502-VM3-000 |
— | ||
|
12
|
12
31600-958-682
Rectifier,reg,
|
31600-958-682 |
— | ||
|
13
|
13
31650-958-681
Unit assy., d.c.
|
31650-958-681 |
— | ||
|
14
|
14
31655-958-681
Fuse, receptacle
|
31655-958-681 |
— | ||
|
15
|
15
32100-969-000
Harness,wire
|
32100-969-000 |
— | ||
|
16
|
16
32401-969-000
Cable,relay bat.
|
32401-969-000 |
— | ||
|
17
|
17
32402-VM5-000
Cable,start motor
|
32402-VM5-000 |
— | ||
|
18
|
18
32411-MB2-000
Cover,bat.termina
|
32411-MB2-000 |
— | ||
|
19
|
19
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
20
|
20
32601-958-680
Cabl batery earth
|
32601-958-680 |
— | ||
|
21
|
21
35850-HA8-771
Switch assy.,stat
|
35850-HA8-771 |
— | ||
|
22
|
22
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
23
|
23
35857-969-000
Cvr, magnetic switch
|
35857-969-000 |
— | ||
|
24
|
24
38500-969-405
Relay assy,start(
|
38500-969-405 |
— | ||
|
25
|
25
38506-GJ8-004
Susp,start,rely
|
38506-GJ8-004 |
— | ||
|
26
|
26
50334-958-681
Rubber, battery
|
50334-958-681 |
— | ||
|
27
|
27
90071-MB0-000 Nut-washer, 6mm |
90071-MB0-000 |
from US $2.22 |
||
|
28
|
28
90655-969-003 Clip, wireUse from Frame SN EC319308 |
90655-969-003 |
US $3.01 |
||
|
29
|
29
93492-050-250-8
Bolt-washer (5x25)
|
93492-050-250-8 |
— | ||
|
30
|
30
93891-0501800 Screw-washer (5x18) |
93891-0501800 |
US $0.44 |
||
|
31
|
31
93894-050-220-0 Screw wash 5x22 |
93894-050-220-0 |
US $0.52 |
||
|
32
|
32
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
33
|
33
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
34
|
34
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
35
|
35
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
36
|
36
9501461200 Band a2, wireUse up to Frame SN EC308511 |
9501461200 |
from US $1.24 |
||
|
37
|
37
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
||
|
38
|
38
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
39
|
39
98200-10500 Fuse a5A |
98200-10500 |
from US $0.59 |
||
|
40
|
40
98200-21000 Fuse b10A |
98200-21000 |
from US $0.59 |
||
