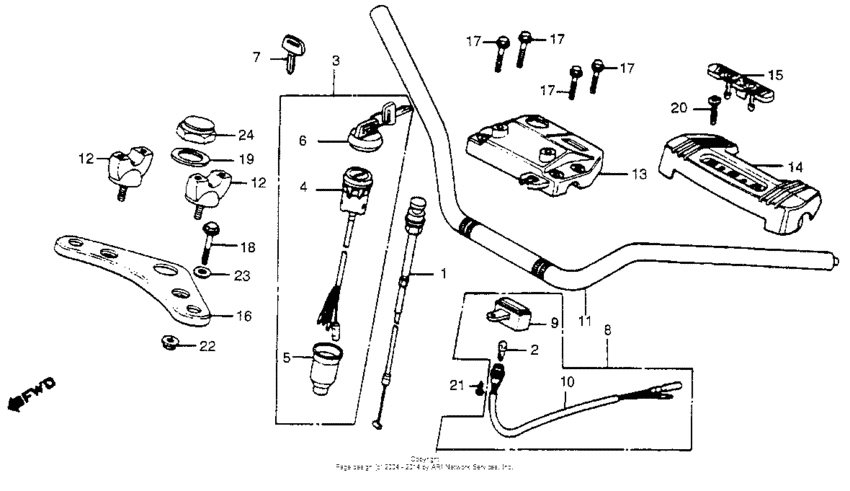

Handlebar + top bridge Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB054*EC300005 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-VM3-000
Cable comp,choke
|
17950-VM3-000 |
— | ||
|
2
|
2
34908-MB0-003 Bulb, wedge base (12v 3w) |
34908-MB0-003 |
from US $2.22 |
||
| replacement | |||||
|
2
|
2
34275-S2X-003 Bulb 12V 2.3W Wed |
34275-S2X-003 |
from US $2.22 |
||
|
3
|
3
35010-958-680
Lock set
|
35010-958-680 |
— | ||
|
4
|
4
35010-958-680
Lock set
|
35010-958-680 |
— | ||
|
5
|
5
35105-958-680 Cover |
35105-958-680 |
US $5.18 |
||
|
6
|
6
35113-958-681 Cap, combination switch key |
35113-958-681 |
US $7.39 |
||
|
7
|
7
35121-086-811
Key, blank (type 1) (key no. axx / bxx)
(Optional). |
35121-086-811 |
— | ||
| replacement | |||||
|
7
|
7
35121-GW0-731 Key,blank (no.1)(Optional). |
35121-GW0-731 |
from US $6.75 |
||
|
7
|
7
35122-086-811 Key, blank (type 2) (key no. cxx / dxx)(Optional). |
35122-086-811 |
from US $9.08 |
||
| replacement | |||||
|
7
|
7
35122-GW0-731 Key,blank (no.2)(Optional). |
35122-GW0-731 |
from US $9.03 |
||
|
8
|
8
38400-968-003
Indicator, neutral
|
38400-968-003 |
— | ||
|
9
|
9
38401-968-003
Case
|
38401-968-003 |
— | ||
|
10
|
10
38402-968-003
Socket
|
38402-968-003 |
— | ||
|
11
|
11
53100-958-681
Pipe,strg.handle
|
53100-958-681 |
— | ||
|
12
|
12
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
12
|
12
53130-958-000 Holder, handlebar |
53130-958-000 |
US $17.34 |
||
| replacement | |||||
|
12
|
12
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
13
|
13
53131-968-000
Holder, handlebar
|
53131-968-000 |
— | ||
|
14
|
14
53205-958-682
Cover, handlebar
|
53205-958-682 |
— | ||
|
15
|
15
53206-958-003
Label
|
53206-958-003 |
— | ||
|
16
|
16
53231-958-020
Bridge, fork top
|
53231-958-020 |
— | ||
|
17
|
17
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $5.03 |
||
|
18
|
18
90115-958-681
Bolt-washer (12x25)
|
90115-958-681 |
— | ||
|
19
|
19
90503-958-000
Washer,strg.stem
|
90503-958-000 |
— | ||
|
20
|
20
93891-060-200-8 Screw-washer6X20 |
93891-060-200-8 |
from US $0.52 |
||
|
21
|
21
93903-34320 ScrewTAPPING, 4X12 |
93903-34320 |
from US $0.37 |
||
|
22
|
22
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
23
|
23
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
24
|
24
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
