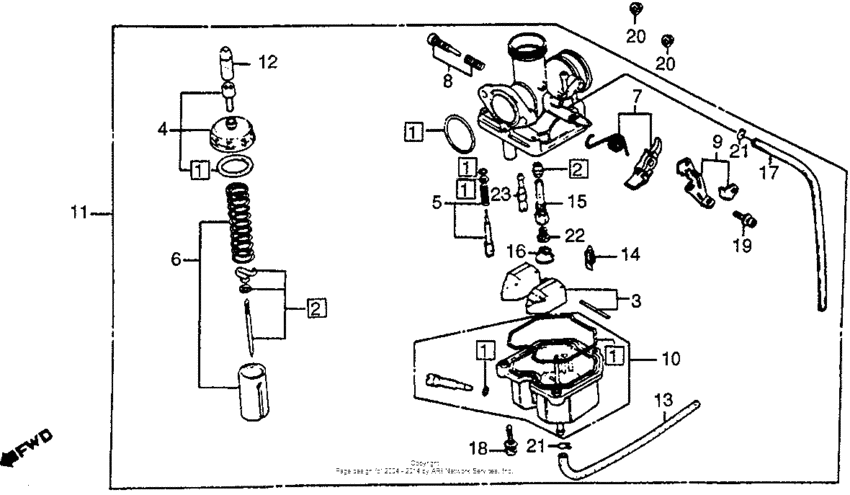

Carburetor Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB054*FK400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-439-305 Gasket set |
16010-439-305 |
from US $25.67 |
||
|
2
|
2
16012-958-681
Needle set,jet
|
16012-958-681 |
— | ||
|
3
|
3
16013-439-921 Float set |
16013-439-921 |
from US $43.79 |
||
|
4
|
4
16014-439-921 Top,set |
16014-439-921 |
US $33.05 |
||
|
5
|
5
16016-402-004 Screw set a |
16016-402-004 |
from US $17.27 |
||
|
6
|
6
16022-437-722 Valve throttle |
16022-437-722 |
US $58.07 |
||
|
7
|
7
16025-KB1-D11
Lever set,choke
|
16025-KB1-D11 |
— | ||
|
8
|
8
16028-KB1-D11 Screw set b |
16028-KB1-D11 |
from US $9.47 |
||
|
9
|
9
16035-KEB-620 Plate set,stay |
16035-KEB-620 |
US $22.68 |
||
|
10
|
10
16045-399-014 Chamber set,float |
16045-399-014 |
US $85 |
||
|
11
|
11
16100-VM3-681
Carburetor assy.
|
16100-VM3-681 |
— | ||
|
12
|
12
16148-KB1-921 Cap, cable sealing |
16148-KB1-921 |
from US $7.99 |
||
|
13
|
13
16199-KG4-405 Tube |
16199-KG4-405 |
from US $8.88 |
||
|
14
|
14
16155-413-751 Valve, float |
16155-413-751 |
from US $13.19 |
||
|
15
|
15
16165-958-681
Holder,jet needl
|
16165-958-681 |
— | ||
|
16
|
16
16168-382-014 Holder, jet |
16168-382-014 |
from US $7.55 |
||
|
17
|
17
16199-KG4-405 Tube |
16199-KG4-405 |
from US $8.88 |
||
|
18
|
18
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
19
|
19
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
20
|
20
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
21
|
21
9500202650 Clip, tube (b6.5) |
9500202650 |
US $2.11 |
||
|
22
|
22
99101-GHB0900 Jet, main (#90)(Optional). |
99101-GHB0900 |
from US $5.33 |
||
|
22
|
22
99101-GHB0950 Jet, main (#95) |
99101-GHB0950 |
from US $5.33 |
||
|
23
|
23
99103-KA3-0380 Jet, slow (#38) |
99103-KA3-0380 |
US $5.33 |
||
| replacement | |||||
|
23
|
23
99103-KBA0380 Jet #38 |
99103-KBA0380 |
from US $6.66 |
||
|
23
|
23
99103-KBA0380 Jet #38 |
99103-KBA0380 |
from US $6.66 |
||
