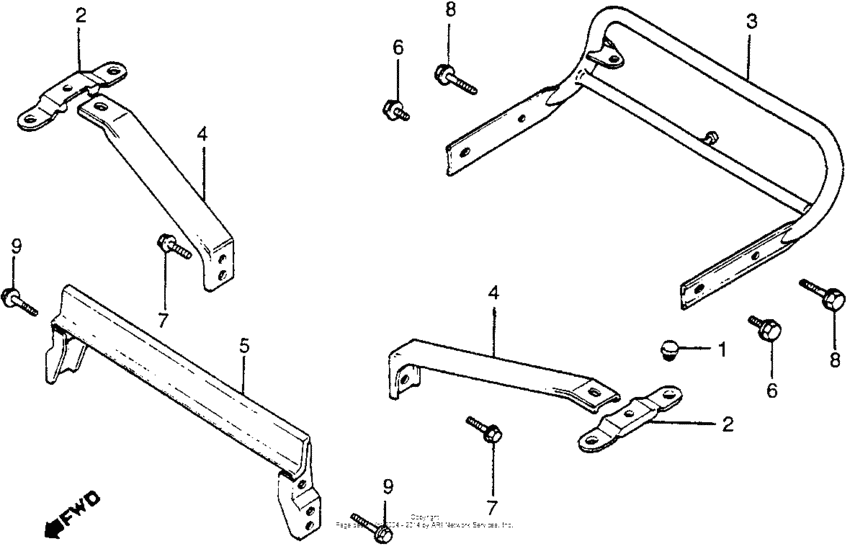

Carrier Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB054*FK400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50355-434-000 Rubber c, stopper |
50355-434-000 |
from US $3.26 |
||
|
2
|
2
80121-VM3-000
Stay, rr. fender
|
80121-VM3-000 |
— | ||
|
3
|
3
81200-VM3-000
Pipe, carrier
|
81200-VM3-000 |
— | ||
|
4
|
4
81302-VM3-680
Support, rr. fender
|
81302-VM3-680 |
— | ||
|
5
|
5
81311-VM3-000
Spacer, lid
|
81311-VM3-000 |
— | ||
|
6
|
6
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.59 |
||
|
7
|
7
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.59 |
||
|
8
|
8
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
|
9
|
9
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
