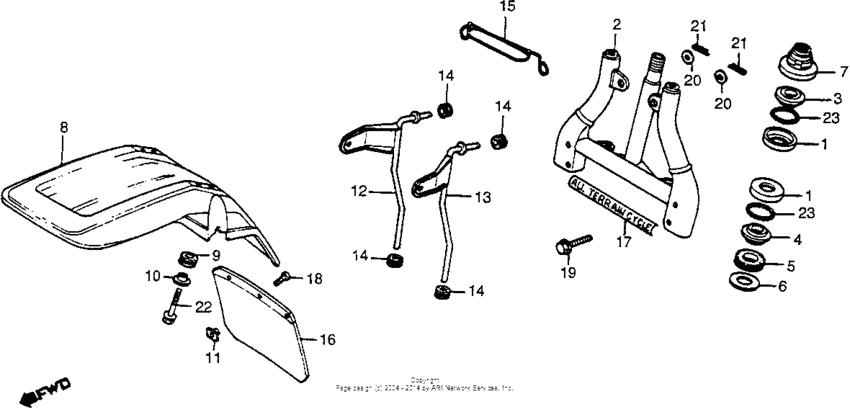

Front fender + steering stem Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB054*FK400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50301-041-010 Race |
50301-041-010 |
from US $7.99 |
||
|
2
|
2
53200-958-010
Stem comp steerin
Use up to Frame SN FK416607 |
53200-958-010 |
— | ||
|
3
|
3
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.84 |
||
|
4
|
4
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.70 |
||
|
5
|
5
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
5
|
5
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.52 |
||
|
6
|
6
53215-GF8-000 Washer, dust seal |
53215-GF8-000 |
from US $2.89 |
||
|
7
|
7
53220-098-670 Thread |
53220-098-670 |
from US $14.42 |
||
|
8
|
8
61100-958-020
Fender, fr.
|
61100-958-020 |
— | ||
|
9
|
9
61103-430-000 Rubber, fr |
61103-430-000 |
from US $4.59 |
||
|
10
|
10
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
10
|
10
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.59 |
||
|
10
|
10
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
11
|
11
61304-958-003 Nut, special, 6x7 |
61304-958-003 |
from US $3.70 |
||
|
12
|
12
61311-VM3-680
Bracket, r
|
61311-VM3-680 |
— | ||
|
13
|
13
61312-VM3-680
Bracket, l
|
61312-VM3-680 |
— | ||
|
14
|
14
61315-358-000 Rubber,mount,22mm |
61315-358-000 |
from US $6.79 |
||
|
15
|
15
61321-VM3-000
Holder, wire
|
61321-VM3-000 |
— | ||
|
16
|
16
61861-VM3-000
Splash guard, fr.
|
61861-VM3-000 |
— | ||
|
17
|
17
87102-958-010
Emblem, fr. fork
|
87102-958-010 |
— | ||
|
18
|
18
90102-673-003
Screw, torus (6x7)
|
90102-673-003 |
— | ||
|
19
|
19
90118-KG8-900
Bolt, flange (10x35)
|
90118-KG8-900 |
— | ||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
|
22
|
22
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
23
|
23
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
