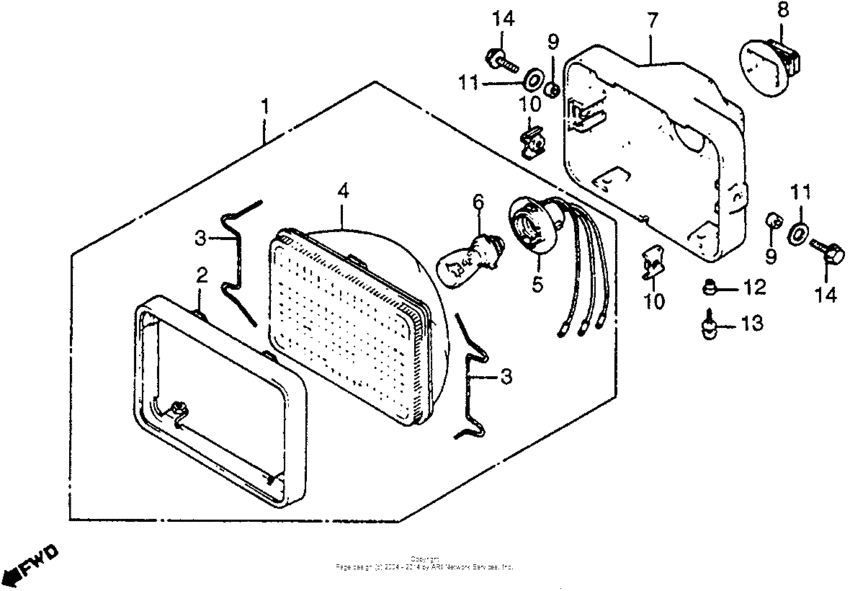

Headlight Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB054*FK400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-958-023
Headlight assy
|
33100-958-023 |
— | ||
|
2
|
2
33101-VM3-003
Rim,headlight
|
33101-VM3-003 |
— | ||
|
3
|
3
33109-440-931 Spring, unit holder |
33109-440-931 |
US $15.32 |
||
|
4
|
4
33120-VM3-003
Unit,head light
|
33120-VM3-003 |
— | ||
|
5
|
5
33130-958-013
Socket,headlight
|
33130-958-013 |
— | ||
|
6
|
6
34901-HC3-003 Bulb (12v45/45w) |
34901-HC3-003 |
from US $6.94 |
||
|
7
|
7
61301-VM3-003ZA
Case h/l *r-109*
|
61301-VM3-003ZA |
— | ||
|
8
|
8
61302-958-680
Grom headlig case
|
61302-958-680 |
— | ||
|
9
|
9
61302-964-000 Collar a,hd/lt |
61302-964-000 |
US $7.55 |
||
|
10
|
10
61303-105-000 Nut,light case |
61303-105-000 |
from US $3.80 |
||
|
11
|
11
61303-229-000 Washer,light case |
61303-229-000 |
from US $2.66 |
||
|
12
|
12
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
13
|
13
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
14
|
14
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
US $1.80 |
||
| replacement | |||||
|
14
|
14
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
14
|
14
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
