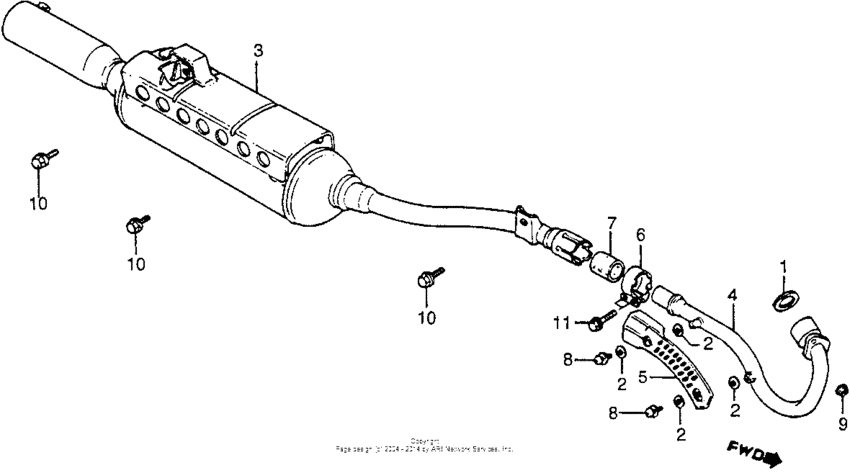

Muffler Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB054*FK400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $5.03 |
||
|
2
|
2
18293-MCA-780 Packing, protector |
18293-MCA-780 |
from US $3.92 |
||
|
3
|
3
18310-VM3-003
Muffler comp.
|
18310-VM3-003 |
— | ||
|
4
|
4
18320-VM3-003
Pipe,ex.
|
18320-VM3-003 |
— | ||
|
5
|
5
18321-VM4-003
Protr,ex,pipe
|
18321-VM4-003 |
— | ||
|
6
|
6
18371-VM5-000 Band, muffler |
18371-VM5-000 |
from US $15.07 |
||
|
7
|
7
18391-958-306 Gasket, muffler |
18391-958-306 |
from US $18.18 |
||
|
8
|
8
93891-060-100-8 Screw-washer6X10 |
93891-060-100-8 |
from US $0.52 |
||
|
9
|
9
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
10
|
10
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.59 |
||
|
11
|
11
95701-080-280-8 BoltFLANGE, 8X28 Use up to Frame SN FK400994 |
95701-080-280-8 |
from US $0.74 |
||
|
11
|
11
95701-080-250-8 BoltFLANGE, 8X25 Use from Frame SN FK400995 |
95701-080-250-8 |
from US $0.74 |
