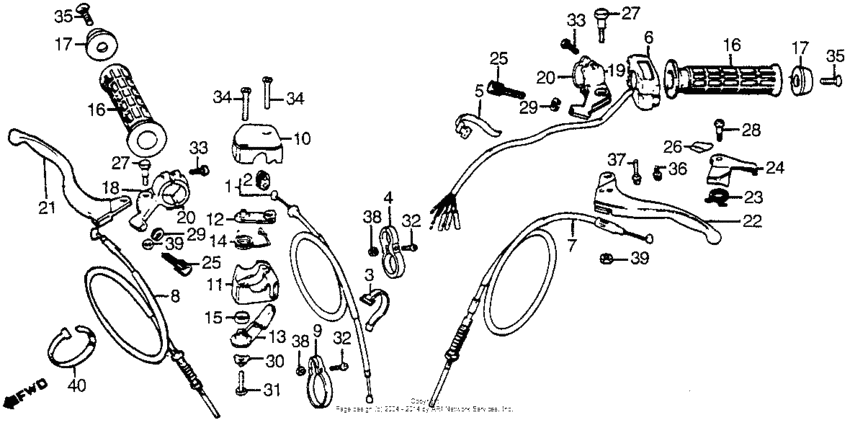

Control levers + switches + cables 84 Diagram Honda ATC ATC200
- Model code
- ATC200S A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB053*EK300001 - JH3TB053*EK315150
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-VM3-000 Cable comp,throt |
17910-VM3-000 |
US $24.37 |
||
|
2
|
2
17913-958-300
Grommet
|
17913-958-300 |
— | ||
|
3
|
3
17914-958-010
Band, throttle cable
|
17914-958-010 |
— | ||
|
4
|
4
17916-958-000
Guide
|
17916-958-000 |
— | ||
|
5
|
5
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
6
|
6
35200-958-013
Switch assy
|
35200-958-013 |
— | ||
|
7
|
7
43460-VM4-770
Cable hand brake
|
43460-VM4-770 |
— | ||
|
8
|
8
45450-958-681 Cable,fr.brake |
45450-958-681 |
US $40.70 |
||
|
9
|
9
45467-958-020
Guide,brk cable
|
45467-958-020 |
— | ||
|
10
|
10
53141-958-000
Cover, throttle
|
53141-958-000 |
— | ||
|
11
|
11
53142-958-000
Case, throttle
|
53142-958-000 |
— | ||
|
12
|
12
53144-958-000 Arm,throttle |
53144-958-000 |
US $8.47 |
||
|
13
|
13
53145-957-000
Control lever
|
53145-957-000 |
— | ||
|
14
|
14
53146-943-000
Spring
|
53146-943-000 |
— | ||
|
15
|
15
53148-957-003
Bush, throttle lever
|
53148-957-003 |
— | ||
|
16
|
16
53165-958-010 Grip, handle |
53165-958-010 |
from US $16.32 |
||
|
17
|
17
53167-427-770
Guard,handle end
|
53167-427-770 |
— | ||
|
18
|
18
53171-968-000
Bracket, r
|
53171-968-000 |
— | ||
|
19
|
19
53172-968-000
Bracket
|
53172-968-000 |
— | ||
|
20
|
20
53173-958-000 Holder |
53173-958-000 |
from US $10.21 |
||
|
21
|
21
53175-958-010
Lever, r. handlebar
|
53175-958-010 |
— | ||
|
22
|
22
53178-968-405 Lever, l. handlebar |
53178-968-405 |
US $19.04 |
||
|
23
|
23
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
24
|
24
53192-968-000
Control lever
|
53192-968-000 |
— | ||
|
25
|
25
53193-968-000 Bolt, wire adjusting |
53193-968-000 |
from US $9.24 |
||
|
26
|
26
87574-968-000
Label
|
87574-968-000 |
— | ||
|
27
|
27
90114-310-000 Bolt |
90114-310-000 |
from US $5.92 |
||
|
28
|
28
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
29
|
29
90321-315-670 Nut, fixing |
90321-315-670 |
from US $6.07 |
||
|
30
|
30
90501-957-000
Washer, lock (5mm)
|
90501-957-000 |
— | ||
|
31
|
31
92101-05022-0A Bolt, hex., 5x22 |
92101-05022-0A |
from US $0.44 |
||
|
32
|
32
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
33
|
33
93500-050180A Screw, pan, 5x18 |
93500-050180A |
from US $0.37 |
||
|
34
|
34
93700-050220B Screw, oval (5x22) |
93700-050220B |
from US $0.59 |
||
|
35
|
35
93700-060-280-G
Screw,oval,6x28
|
93700-060-280-G |
— | ||
|
36
|
36
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
37
|
37
93892-0504007 Screw-washer (5x40) |
93892-0504007 |
US $0.52 |
||
|
38
|
38
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
39
|
39
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
40
|
40
9501461200 Band a2, wire |
9501461200 |
from US $1.30 |
