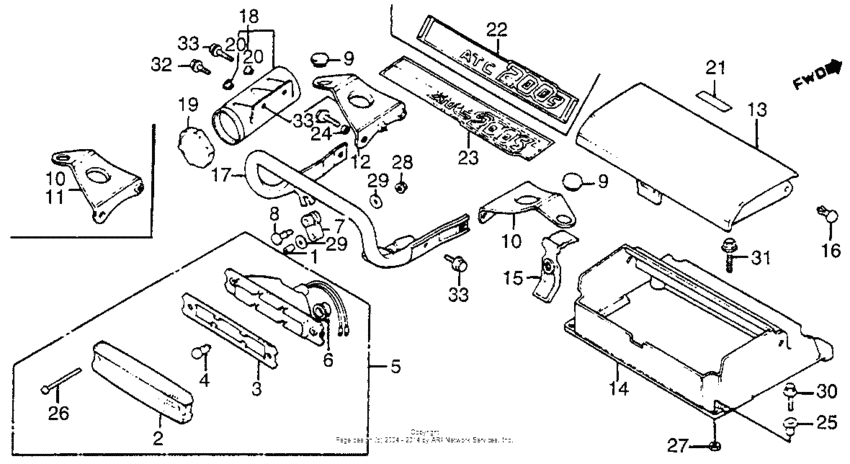

Taillight + carrier Diagram Honda ATC ATC200
- Model code
- ATC200S A
- Engine Capacity
- 200
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TB053*GK500006 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17207-MC7-000
Collar
|
17207-MC7-000 |
— | ||
|
2
|
2
33302-965-003
Lens, taillight
|
33302-965-003 |
— | ||
|
3
|
3
33303-965-003
Gasket, taillight
|
33303-965-003 |
— | ||
|
4
|
4
34910-504-003
Bulb (12v5w)
|
34910-504-003 |
— | ||
|
5
|
5
33700-VM4-770
Taillight assy.
|
33700-VM4-770 |
— | ||
|
6
|
6
33702-965-003
Cover, socket
|
33702-965-003 |
— | ||
|
7
|
7
33715-964-000
Rub,t/light mtg.
|
33715-964-000 |
— | ||
|
8
|
8
33716-964-000 Pin |
33716-964-000 |
from US $3.55 |
||
|
9
|
9
91617-SB6-000 GrommetWASHER HOSE, 32MM |
91617-SB6-000 |
from US $4.16 |
||
|
10
|
10
80121-VM4-000
Stay rr fender
|
80121-VM4-000 |
— | ||
|
12
|
12
80122-VM4-770
Stay, l. rr. fender
|
80122-VM4-770 |
— | ||
|
13
|
13
80211-VM4-771
Lid,tool box
|
80211-VM4-771 |
— | ||
|
14
|
14
80212-VM4-003
Cover,tool box
|
80212-VM4-003 |
— | ||
|
15
|
15
80214-943-000
Band, tool box
|
80214-943-000 |
— | ||
|
16
|
16
80217-958-003 Rivet, tool box |
80217-958-003 |
from US $2.79 |
||
|
17
|
17
81200-VM4-770
Carrier
|
81200-VM4-770 |
— | ||
|
18
|
18
83501-VM4-771
Box,tool
|
83501-VM4-771 |
— | ||
|
19
|
19
83502-HB2-771 Cap, tool box |
83502-HB2-771 |
from US $14.50 |
||
|
20
|
20
83505-KM4-000 Collar, tool box setting |
83505-KM4-000 |
from US $4.11 |
||
|
23
|
23
87527-VM4-770
Stripe, tool box lid
|
87527-VM4-770 |
— | ||
|
24
|
24
90107-VM4-000 Collar, rr. fender |
90107-VM4-000 |
US $2.86 |
||
|
25
|
25
90120-463-770
Collar, cowl setting
|
90120-463-770 |
— | ||
|
26
|
26
90121-965-003 Screw, pan (4x50) |
90121-965-003 |
US $2.55 |
||
|
27
|
27
90106-VM4-003
Nut,rr fender
|
90106-VM4-003 |
— | ||
|
28
|
28
94050-04080 NutFLANGE, 4MM |
94050-04080 |
from US $0.44 |
||
|
29
|
29
94103-04800 WasherPLAIN, 4MM |
94103-04800 |
from US $0.37 |
||
|
30
|
30
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
31
|
31
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
32
|
32
95701-080-140-0 BoltFLANGE, 8X14 |
95701-080-140-0 |
from US $0.59 |
||
|
33
|
33
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
US $1.80 |
||
| replacement | |||||
|
33
|
33
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
33
|
33
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
