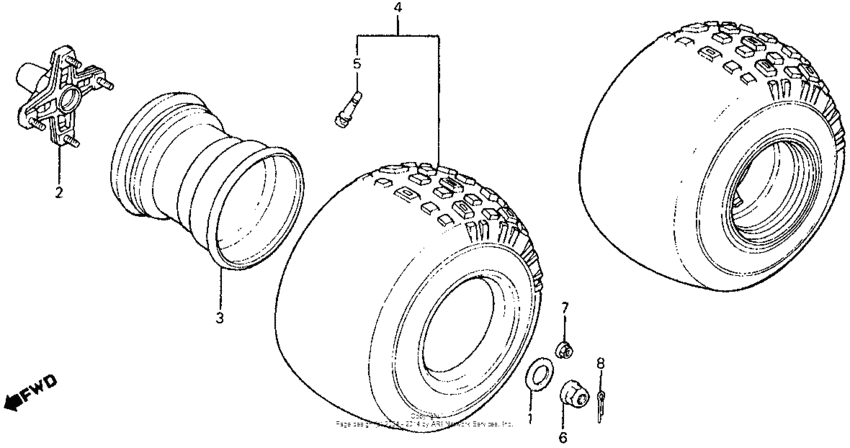

Rear wheel Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB052*FK400006 - JH3TB052*FK447345
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42322-961-000
Washer,rr.axle
|
42322-961-000 |
— | ||
|
2
|
2
42410-965-680ZA
Hub, rr. *nh38m*
|
42410-965-680ZA |
— | ||
|
3
|
3
42701-965-680
Rim comp rr wheel
|
42701-965-680 |
— | ||
|
4
|
4
42750-HA6-681AT
Tire (22x11.0-8)
|
42750-HA6-681AT |
— | ||
|
4
|
4
42750-HA6-000
Tire,wheel
|
42750-HA6-000 |
— | ||
|
5
|
5
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
6
|
6
90306-329-770 Nut, rr. wheel axle |
90306-329-770 |
from US $6.81 |
||
|
7
|
7
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
7
|
7
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $3.33 |
||
|
8
|
8
9420140400 Pin, split, 4.0x40 |
9420140400 |
from US $0.44 |
