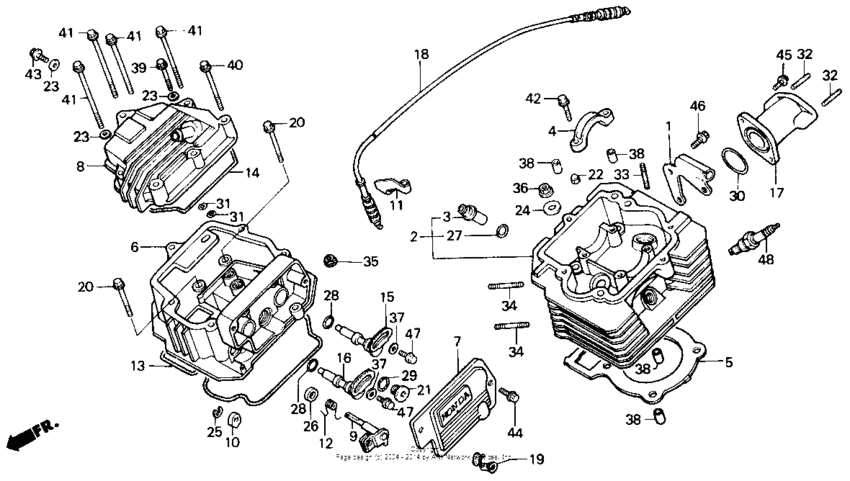

Cylinder head Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TB052*GK500056 - JH3TB052*GK519186
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-HB5-000
Plate
|
11851-HB5-000 |
— | ||
|
2
|
2
12200-HB5-000
Cylinder head
|
12200-HB5-000 |
— | ||
|
3
|
3
12204-HB3-300
Guide, valve
|
12204-HB3-300 |
— | ||
|
4
|
4
12211-HB3-000
Holder, cam
|
12211-HB3-000 |
— | ||
|
5
|
5
12251-HB3-003
Gasket, cyl hd
|
12251-HB3-003 |
— | ||
|
5
|
5
12252-HB3-305
Gasket
(Optional). |
12252-HB3-305 |
— | ||
|
6
|
6
12310-HB3-000
Cover, cylinder
|
12310-HB3-000 |
— | ||
|
7
|
7
12311-HB3-000
Cover, tapt adj hole
|
12311-HB3-000 |
— | ||
|
8
|
8
12315-HB3-000
Cover, breather
|
12315-HB3-000 |
— | ||
|
9
|
9
12320-HB5-010
Lifter, valve
Use up to Engine SN 6316739 |
12320-HB5-010 |
— | ||
|
10
|
10
12325-HB3-003
Cam, valve lifter
|
12325-HB3-003 |
— | ||
|
11
|
11
12327-HB5-000
Stay, cable holder
|
12327-HB5-000 |
— | ||
|
12
|
12
12352-HB5-000
Spring
|
12352-HB5-000 |
— | ||
|
13
|
13
12391-HB3-004
Gasket, head cover
|
12391-HB3-004 |
— | ||
|
14
|
14
12396-HB3-003
Gasket, bthr cvr
|
12396-HB3-003 |
— | ||
|
15
|
15
14450-HB3-010
Shaft
|
14450-HB3-010 |
— | ||
|
16
|
16
14460-HB3-010
Shaft
|
14460-HB3-010 |
— | ||
|
17
|
17
16210-HB5-000
Insulator,carb
|
16210-HB5-000 |
— | ||
|
18
|
18
28291-HB5-000
Cable comp.,decom
Use up to Engine SN 6316745 |
28291-HB5-000 |
— | ||
|
18
|
18
28291-HB5-003
Cable comp.,decom
Use from Engine SN 6316746 |
28291-HB5-003 |
— | ||
|
19
|
19
32925-HB5-000
Clip, ignition wire
|
32925-HB5-000 |
— | ||
|
20
|
20
90004-ML7-000
Bolt flange,6x60
|
90004-ML7-000 |
— | ||
|
21
|
21
90084-MN8-010 Cap (14mm) |
90084-MN8-010 |
from US $3.38 |
||
|
22
|
22
90301-MA6-003 Nut (6mm) |
90301-MA6-003 |
from US $3.18 |
||
|
23
|
23
90441-706-000 Washer, sealing, 6mm |
90441-706-000 |
from US $1.11 |
||
|
24
|
24
90465-MC4-000 Washer, 8mm |
90465-MC4-000 |
from US $2.59 |
||
|
25
|
25
90602-KA4-741 Cir clip ex6 |
90602-KA4-741 |
US $4.81 |
||
|
26
|
26
91203-HB3-004
Oil seal,8x15x6
|
91203-HB3-004 |
— | ||
|
27
|
27
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.44 |
||
|
28
|
28
91305-PE2-003 O-ring (9.8x1.9) |
91305-PE2-003 |
from US $2.44 |
||
|
29
|
29
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
30
|
30
91304-HB3-003 O-ring (33.5x3.0) |
91304-HB3-003 |
from US $5.62 |
||
|
31
|
31
91313-MA6-005 O-ring (4.8x1.9) |
91313-MA6-005 |
from US $3.77 |
||
|
32
|
32
92900-06016-0B BoltSTUD, 6X16 |
92900-06016-0B |
from US $0.59 |
||
|
33
|
33
92900-06020-0B BoltSTUD, 6X20 |
92900-06020-0B |
from US $0.59 |
||
|
34
|
34
92900-06020-3B BoltSTUD, 6X20 |
92900-06020-3B |
US $0.56 |
||
|
35
|
35
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
36
|
36
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
37
|
37
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
38
|
38
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
39
|
39
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
|
40
|
40
95701-0607000 Bolt, flange, 6x70 |
95701-0607000 |
from US $0.81 |
||
|
41
|
41
95701-0608007 Bolt, flange (6x80) |
95701-0608007 |
from US $0.52 |
||
|
42
|
42
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
|
43
|
43
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
44
|
44
96001-0601407 Bolt, flange, 6x14 |
96001-0601407 |
from US $0.59 |
||
|
45
|
45
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
|
46
|
46
96300-0802007 Bolt, flange (8x20) |
96300-0802007 |
from US $0.74 |
||
|
47
|
47
96300-0601400 Bolt, flange (6x14) |
96300-0601400 |
from US $0.59 |
||
|
48
|
48
9806938719 Spark plug (dr8es-l) |
9806938719 |
from US $3.40 |
||
|
48
|
48
9806958726 S/plg (x24esr-u) |
9806958726 |
from US $3.96 |
