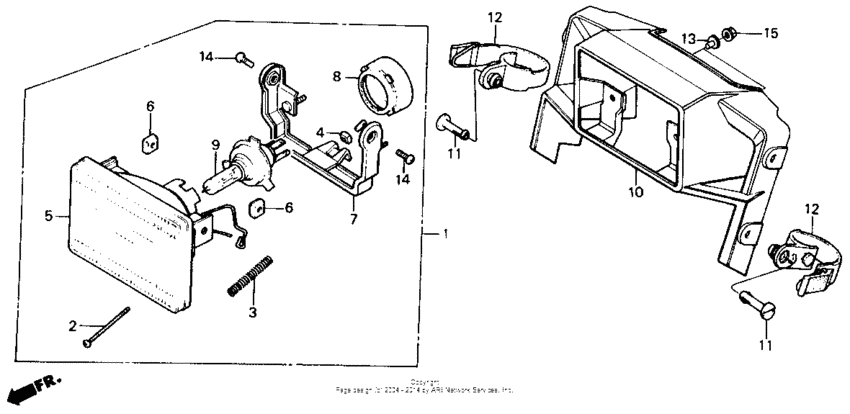

Headlight Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TB052*GK500056 - JH3TB052*GK519186
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-HA2-671
Headlight assy.(1
|
33100-HA2-671 |
— | ||
|
2
|
2
33103-329-003 Screw |
33103-329-003 |
US $7.40 |
||
|
3
|
3
33107-KJ9-003
Spring
|
33107-KJ9-003 |
— | ||
|
4
|
4
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
5
|
5
33120-HA2-671
Headlight unit
|
33120-HA2-671 |
— | ||
|
6
|
6
33128-471-003 Nut, unit holder |
33128-471-003 |
from US $2.22 |
||
|
7
|
7
33153-HA2-671
Ring, setting
|
33153-HA2-671 |
— | ||
|
8
|
8
33180-HA2-671 Cover, rubber |
33180-HA2-671 |
US $16.56 |
||
|
9
|
9
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
9
|
9
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
10
|
10
61301-HB5-003
Case,headlight
|
61301-HB5-003 |
— | ||
|
11
|
11
61308-HA2-000
Pin, headlight band
|
61308-HA2-000 |
— | ||
|
12
|
12
61309-HB5-000
Band,headlight ca
|
61309-HB5-000 |
— | ||
|
13
|
13
84706-415-000 Collar |
84706-415-000 |
from US $3.18 |
||
|
14
|
14
93500-050-100-H ScrewPAN, 5X10 |
93500-050-100-H |
from US $0.37 |
||
|
15
|
15
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
