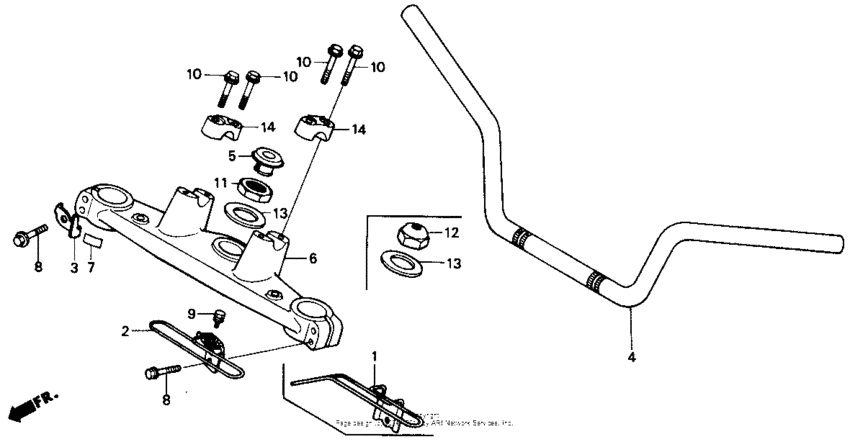

Handlebar Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45469-HA2-000
Guide, brake hose
|
45469-HA2-000 |
— | ||
|
4
|
4
53100-HA2-770
Pipe strg hndl.
|
53100-HA2-770 |
— | ||
|
6
|
6
53230-HA2-000
Bridge,fork top
|
53230-HA2-000 |
— | ||
|
8
|
8
90103-KF0-000 Bolt, flange (8x45) |
90103-KF0-000 |
from US $3.55 |
||
|
10
|
10
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.38 |
||
|
12
|
12
90304-428-000
Nut,stem
|
90304-428-000 |
— | ||
|
13
|
13
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
14
|
14
95014-22100 Holder b1, handlebar |
95014-22100 |
from US $7.70 |
