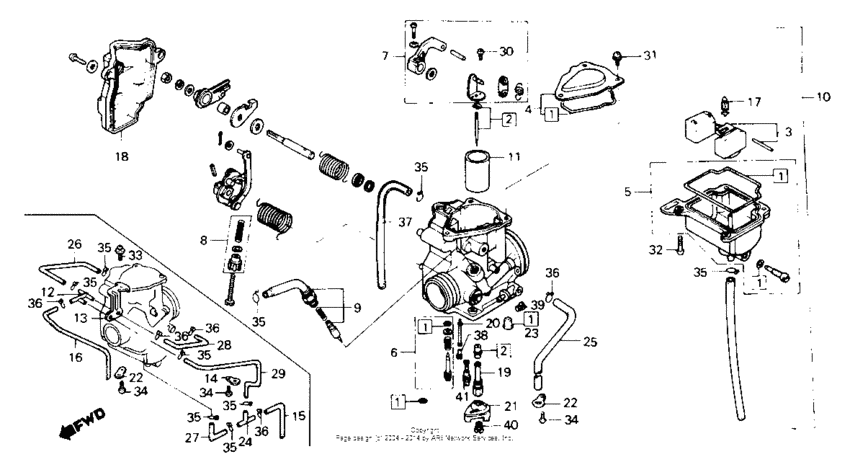

Carburetor Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE042*GM100011 - JH3TE042*GM111920
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-HA0-681 Gasket set |
16010-HA0-681 |
from US $27.64 |
||
|
2
|
2
16012-HA0-003
Needle set,jet
|
16012-HA0-003 |
— | ||
|
3
|
3
16013-HN5-671 Float set |
16013-HN5-671 |
from US $44.61 |
||
|
4
|
4
16014-HA0-003
Top set
|
16014-HA0-003 |
— | ||
| replacement | |||||
|
4
|
4
16014-HM3-L00 Top set |
16014-HM3-L00 |
US $40.12 |
||
|
4
|
4
16014-HM3-L00 Top set |
16014-HM3-L00 |
US $40.12 |
||
|
5
|
5
16015-HA0-682
Float set,chamber
|
16015-HA0-682 |
— | ||
|
6
|
6
16016-HM3-L00 Screw set |
16016-HM3-L00 |
US $19.72 |
||
|
7
|
7
16018-HA7-671
Arm set,link
|
16018-HA7-671 |
— | ||
| replacement | |||||
|
7
|
7
16018-HA7-771
Arm set,link
|
16018-HA7-771 |
— | ||
|
8
|
8
16028-KR3-671
Screw set
|
16028-KR3-671 |
— | ||
| replacement | |||||
|
8
|
8
16028-KR3-980 Screw set |
16028-KR3-980 |
from US $23.94 |
||
|
9
|
9
16046-HA0-681
Valve set,starter
|
16046-HA0-681 |
— | ||
|
10
|
10
16100-HA6-305
Carburetor assy.
|
16100-HA6-305 |
— | ||
|
11
|
11
16111-HA0-003
Piston,vacuum
|
16111-HA0-003 |
— | ||
|
12
|
12
16133-HA0-003
Joint
|
16133-HA0-003 |
— | ||
|
13
|
13
16134-HA0-003
Stay, joint
|
16134-HA0-003 |
— | ||
|
14
|
14
16134-HA0-681
Binder
|
16134-HA0-681 |
— | ||
|
15
|
15
16198-ML4-405
Tube
|
16198-ML4-405 |
— | ||
|
16
|
16
16144-HA0-681
Tube
|
16144-HA0-681 |
— | ||
|
17
|
17
16155-397-971 Valve, float |
16155-397-971 |
from US $22.03 |
||
|
18
|
18
16160-HA0-003
Body cover
|
16160-HA0-003 |
— | ||
|
19
|
19
16165-HA6-003
Holder, needle jet
|
16165-HA6-003 |
— | ||
|
20
|
20
16166-HA6-003
Nozzle,main
|
16166-HA6-003 |
— | ||
|
21
|
21
16168-HA5-004
Holder, jet
|
16168-HA5-004 |
— | ||
| replacement | |||||
|
21
|
21
16168-HC4-003 Holder, jet |
16168-HC4-003 |
from US $8.55 |
||
|
21
|
21
16168-HC4-003 Holder, jet |
16168-HC4-003 |
from US $8.55 |
||
|
22
|
22
16179-HA0-003 Binder |
16179-HA0-003 |
from US $9.63 |
||
|
23
|
23
16179-HA0-681
Binder
|
16179-HA0-681 |
— | ||
|
24
|
24
17194-MN5-000 T-joint |
17194-MN5-000 |
from US $6.81 |
||
|
26
|
26
16198-HA0-681
Tube
|
16198-HA0-681 |
— | ||
|
27
|
27
16199-GC7-004 Rubber,pipe |
16199-GC7-004 |
US $4.77 |
||
|
28
|
28
16199-HA0-681
Tube,air vent
|
16199-HA0-681 |
— | ||
|
29
|
29
16199-943-003
Tube, air vent
|
16199-943-003 |
— | ||
|
30
|
30
93500-030-060-H ScrewPAN, 3X6 |
93500-030-060-H |
from US $0.38 |
||
|
31
|
31
93500-040-080-H ScrewPAN, 4X8 |
93500-040-080-H |
from US $0.37 |
||
|
32
|
32
93500-040-140-H ScrewPAN, 4X14 |
93500-040-140-H |
from US $0.37 |
||
|
33
|
33
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.44 |
||
|
34
|
34
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
35
|
35
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
36
|
36
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
38
|
38
99101-HA0-0450 Jet,main,#45 |
99101-HA0-0450 |
US $4.44 |
||
|
39
|
39
99112-HC4-0800 Jet (#80) |
99112-HC4-0800 |
US $7.84 |
||
|
40
|
40
99101-GHB1300 Jet (#130) |
99101-GHB1300 |
US $5.33 |
||
| replacement | |||||
|
40
|
40
99101-MEG-1300 Jet (#130) |
99101-MEG-1300 |
from US $5.33 |
||
|
41
|
41
99103-MA4-0380 Jet,slow,#38 |
99103-MA4-0380 |
from US $8.58 |
||
