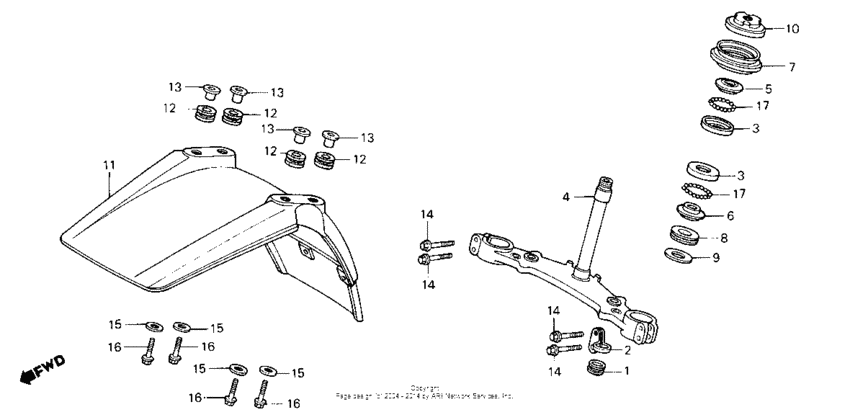

Front fender + steering stem Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE042*GM100011 - JH3TE042*GM111920
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.44 |
||
|
2
|
2
45468-KA2-680
Guide b,brk.cable
|
45468-KA2-680 |
— | ||
|
3
|
3
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
4
|
4
53200-HA6-000
Stem, steering
|
53200-HA6-000 |
— | ||
|
5
|
5
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
6
|
6
53212-200-305 Race, steering cone |
53212-200-305 |
from US $24.14 |
||
|
7
|
7
53213-HA0-000
Seal,head pipe
|
53213-HA0-000 |
— | ||
|
8
|
8
53214-200-000 Dust seal |
53214-200-000 |
from US $2.14 |
||
|
9
|
9
53215-200-000 Washer |
53215-200-000 |
from US $1.82 |
||
|
10
|
10
53220-965-000
Thread
|
53220-965-000 |
— | ||
|
11
|
11
61100-HA6-770ZA
Fender *r-109*
|
61100-HA6-770ZA |
— | ||
|
12
|
12
61103-430-000 Rubber, fr |
61103-430-000 |
from US $4.59 |
||
|
13
|
13
61104-444-000 Collar,fend.mtg. |
61104-444-000 |
from US $7.10 |
||
|
14
|
14
90118-VM6-000 Bolt, flange (8x40) |
90118-VM6-000 |
from US $3.40 |
||
|
15
|
15
90404-680-000 Washer6.5X25X1.5 |
90404-680-000 |
US $7.48 |
||
|
16
|
16
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
17
|
17
96211-08000 Ball |
96211-08000 |
from US $0.13 |
