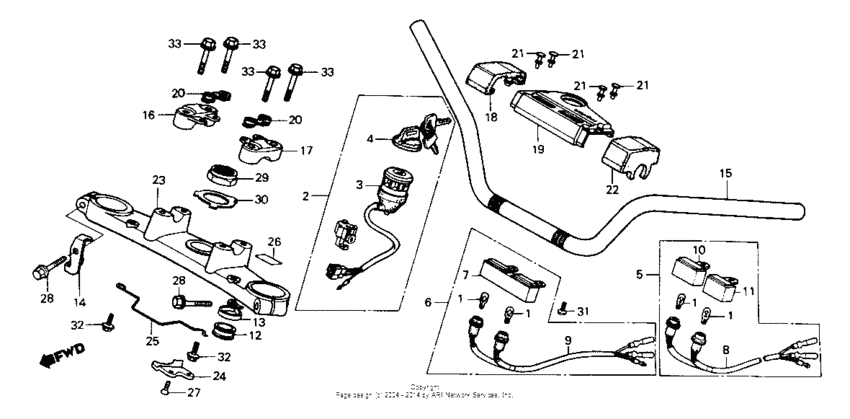

Handlebar + top bridge Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE042*GM100011 - JH3TE042*GM111920
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-MB0-003 Bulb, wedge base (12v 3w) |
34908-MB0-003 |
from US $2.22 |
||
| replacement | |||||
|
1
|
1
34275-S2X-003 Bulb 12V 2.3W Wed |
34275-S2X-003 |
from US $2.22 |
||
|
2
|
2
35010-HA6-681
Lock set
Use up to Frame SN GM109267 |
35010-HA6-681 |
— | ||
|
3
|
3
35100-HA6-682
Sw.assy.,comb.
|
35100-HA6-682 |
— | ||
|
4
|
4
35113-VM5-003
Cap,comb sw key
|
35113-VM5-003 |
— | ||
|
6
|
6
38400-HA6-681
Indicator assy.
|
38400-HA6-681 |
— | ||
|
7
|
7
38401-HA6-680
Case, indicator
|
38401-HA6-680 |
— | ||
|
9
|
9
38402-HA6-680
Socket
|
38402-HA6-680 |
— | ||
|
12
|
12
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.44 |
||
|
13
|
13
45467-HA6-000
Guide, brake cable
|
45467-HA6-000 |
— | ||
|
15
|
15
53100-HA6-681
Handlebar
Use up to Frame SN GM106606 |
53100-HA6-681 |
— | ||
|
16
|
16
53111-HA6-000
Holder, r. handle
|
53111-HA6-000 |
— | ||
|
17
|
17
53121-HA6-000
Holder, l. handle
|
53121-HA6-000 |
— | ||
|
18
|
18
53205-HA6-000
Cover, r. handle
|
53205-HA6-000 |
— | ||
|
19
|
19
53210-HA6-000
Panel,indicator
|
53210-HA6-000 |
— | ||
|
20
|
20
53211-HA6-000
Rubber
|
53211-HA6-000 |
— | ||
|
21
|
21
53212-HA6-000
Pin
|
53212-HA6-000 |
— | ||
|
22
|
22
53215-HA6-000
Cover, l. handle
|
53215-HA6-000 |
— | ||
|
23
|
23
53230-HA6-680
Bridge, fork top
|
53230-HA6-680 |
— | ||
|
24
|
24
53232-HA6-680
Stopper, handle lock
|
53232-HA6-680 |
— | ||
|
25
|
25
61321-HA6-000
Holder, wire
|
61321-HA6-000 |
— | ||
|
26
|
26
87511-323-670 Label, helmet holder |
87511-323-670 |
from US $3.94 |
||
|
27
|
27
90107-195-860
Bolt b (6mm)
|
90107-195-860 |
— | ||
|
28
|
28
90118-VM6-000 Bolt, flange (8x40) |
90118-VM6-000 |
from US $3.40 |
||
|
29
|
29
90304-443-760
Nut, steering stem
|
90304-443-760 |
— | ||
|
30
|
30
90482-965-000
Washer
|
90482-965-000 |
— | ||
|
31
|
31
90101-HA6-000
Screw
|
90101-HA6-000 |
— | ||
|
32
|
32
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
33
|
33
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
||
