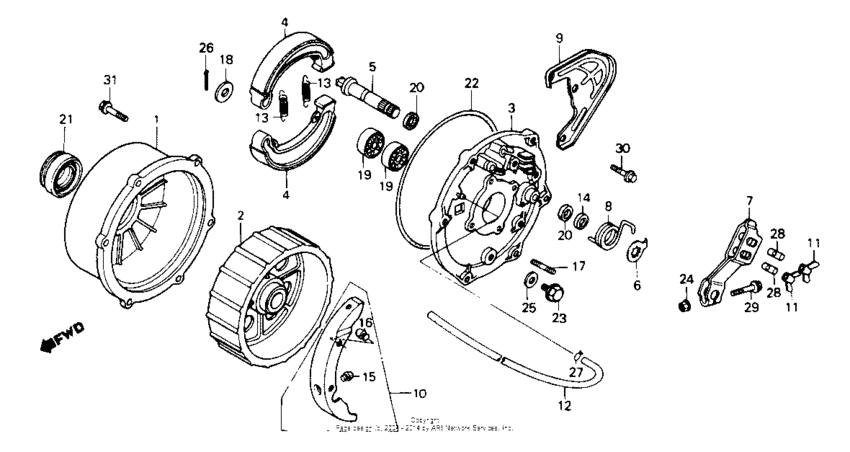

Rear brake panel 86,87 Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE042*GM100011 - JH3TE042*GM111920
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40532-HA6-680
Cover,rr.brake
|
40532-HA6-680 |
— | ||
|
2
|
2
42622-HA8-000
Drum comp,rr.brkt
|
42622-HA8-000 |
— | ||
|
3
|
3
43100-HA0-680
Panel comp,rear b
|
43100-HA0-680 |
— | ||
|
4
|
4
43120-KG4-006
Shoe, rr. brake (ask) (see kit
|
43120-KG4-006 |
— | ||
|
5
|
5
43141-HA8-000
Cam,rr.brake
|
43141-HA8-000 |
— | ||
|
6
|
6
43145-HA0-000
Indicator,brake
|
43145-HA0-000 |
— | ||
|
7
|
7
43410-HA0-010
Arm,r.rr.brake
|
43410-HA0-010 |
— | ||
|
8
|
8
43415-HA0-680 Spg.rr.brk.arm (r |
43415-HA0-680 |
US $4.60 |
||
|
9
|
9
43421-HA0-770
Guard, rr. brake arm
|
43421-HA0-770 |
— | ||
|
10
|
10
43430-HA0-680
Guard, panel
|
43430-HA0-680 |
— | ||
|
11
|
11
43459-HM5-A10 Nut, brake adjusting |
43459-HM5-A10 |
US $10.81 |
||
|
12
|
12
43481-HA6-000
Tube, rr.
|
43481-HA6-000 |
— | ||
|
13
|
13
45133-329-000 Spring, fr. brake shoe |
45133-329-000 |
from US $3.26 |
||
|
14
|
14
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.22 |
||
|
15
|
15
50354-428-000 Rubber b, stopper |
50354-428-000 |
from US $3.40 |
||
|
16
|
16
50355-434-000 Rubber c, stopper |
50355-434-000 |
from US $3.26 |
||
|
17
|
17
90151-HA8-000
Bolt,stud 2,10x28
|
90151-HA8-000 |
— | ||
|
18
|
18
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
19
|
19
91057-HA0-681 Bearing (28x58x16) |
91057-HA0-681 |
from US $31.06 |
||
|
20
|
20
91208-611-005 Dust seal14X20X4 (NOK) |
91208-611-005 |
from US $3.63 |
||
|
21
|
21
91262-HA8-003 Dt,sel,41x67x10.5 |
91262-HA8-003 |
US $16.61 |
||
|
22
|
22
91311-393-003 O-ring,190x3.0 |
91311-393-003 |
US $14.67 |
||
|
23
|
23
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.26 |
||
|
24
|
24
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
25
|
25
94109-12000 Washer, DRAIN PLUG, 12MM |
94109-12000 |
from US $0.98 |
||
|
26
|
26
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
US $1.48 |
||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
US $1.48 |
||
|
27
|
27
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
28
|
28
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
29
|
29
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
30
|
30
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
||
|
31
|
31
95801-060-280-8 BoltFLANGE, 6X28 |
95801-060-280-8 |
from US $0.59 |
||
