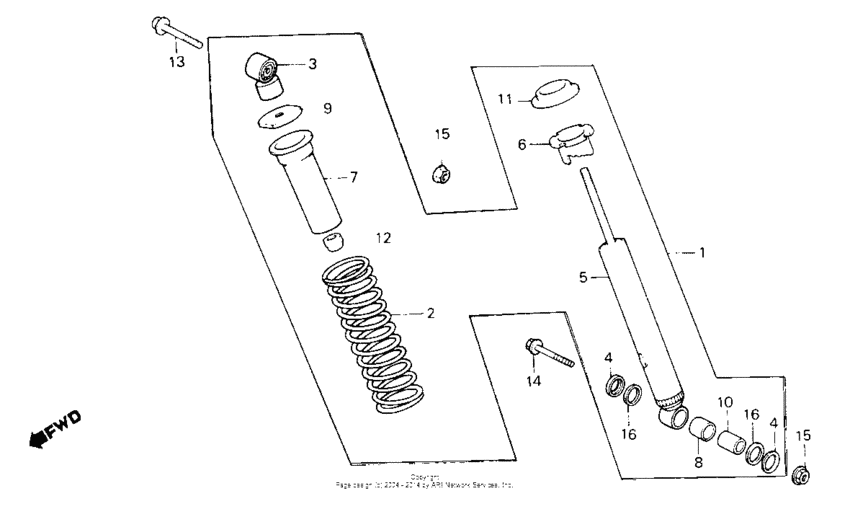

Rear shock absorber Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE042*GM100011 - JH3TE042*GM111920
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-HA6-682ZA
S/abs assy. *b106*
|
52400-HA6-682ZA |
— | ||
|
2
|
2
52401-HA6-681ZA
Spring, rr. *b106*
|
52401-HA6-681ZA |
— | ||
|
3
|
3
52403-HA6-003
Joint, metal
|
52403-HA6-003 |
— | ||
|
4
|
4
52406-KB7-003 Cap, dust seal |
52406-KB7-003 |
from US $4.40 |
||
|
5
|
5
52410-HA6-003
Damper, rr.
|
52410-HA6-003 |
— | ||
|
6
|
6
52422-HA0-003 Adjuster, spring |
52422-HA0-003 |
US $30.84 |
||
|
7
|
7
52423-HA0-003 Guide, spring |
52423-HA0-003 |
US $18.60 |
||
|
8
|
8
52452-KB7-003 Bush, shock (upper) |
52452-KB7-003 |
from US $13.35 |
||
|
9
|
9
52481-HA0-003
Nut, lock
|
52481-HA0-003 |
— | ||
|
10
|
10
52486-HA6-003
Colr, rubber (lower)
|
52486-HA6-003 |
— | ||
|
12
|
12
52517-VM5-003
Rubber, stopper
Use up to Frame SN GM108367 |
52517-VM5-003 |
— | ||
|
12
|
12
52517-HA0-003
Rubber, stopper
Use from Frame SN GM108368 |
52517-HA0-003 |
— | ||
|
13
|
13
90153-HA6-000
Bolt,flange,10x45
|
90153-HA6-000 |
— | ||
|
14
|
14
90154-HA6-000 Bolt, flange (10c60) |
90154-HA6-000 |
from US $8.73 |
||
|
15
|
15
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $3.33 |
||
|
16
|
16
91351-KB7-003 Dust seal b |
91351-KB7-003 |
from US $2.59 |
