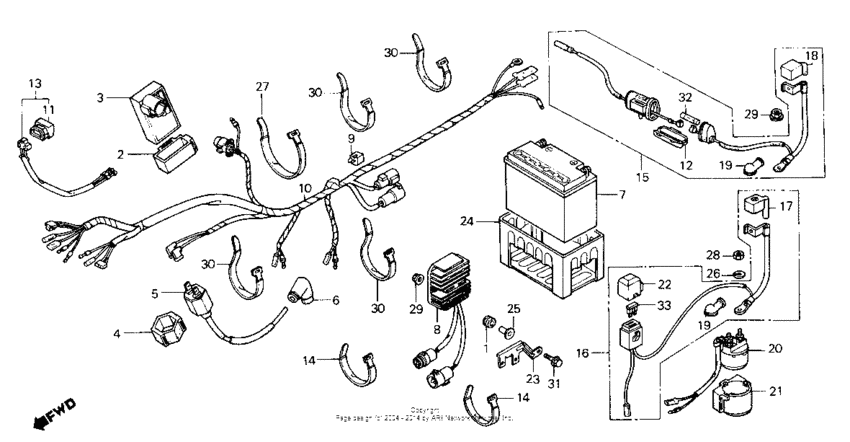

Wire harness + battery Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE042*GM100011 - JH3TE042*GM111920
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11344-MB0-000 Grommet a, rr. cover (8x16x6.6) |
11344-MB0-000 |
from US $3.48 |
||
|
2
|
2
30401-HA0-000
Cushion, c.d.i. unit
|
30401-HA0-000 |
— | ||
| replacement | |||||
|
2
|
2
30401-KYY-900 CUSHION |
30401-KYY-900 |
from US $5.70 |
||
|
3
|
3
30410-HA8-003
C.d.i.unit
|
30410-HA8-003 |
— | ||
|
4
|
4
30506-HA0-000
Suspension ign.
|
30506-HA0-000 |
— | ||
|
5
|
5
30510-MK4-405 Coil, ignition |
30510-MK4-405 |
from US $98.01 |
||
|
6
|
6
30700-MA0-163 Cap assy. |
30700-MA0-163 |
from US $24.71 |
||
|
7
|
7
31500-HF1-678AH Battery (ytx12-bs) |
31500-HF1-678AH |
from US $128.45 |
||
| replacement | |||||
|
7
|
7
31500-HS0-AK1AH BATTERY (YTX12-BS) |
31500-HS0-AK1AH |
US $128.45 |
||
|
8
|
8
31600-HA8-770
Rectifier, regulator
|
31600-HA8-770 |
— | ||
|
9
|
9
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $26.57 |
||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $26.57 |
||
|
10
|
10
32100-HA6-680
Wire harness
|
32100-HA6-680 |
— | ||
|
11
|
11
32106-KE1-600 Cov,hd/lt.socket |
32106-KE1-600 |
US $4.09 |
||
|
13
|
13
32120-HA6-000
Sub-wire harness
|
32120-HA6-000 |
— | ||
|
14
|
14
32161-404-610 Band b1, wire |
32161-404-610 |
from US $3.18 |
||
|
16
|
16
32401-HA6-770
Cable, battery relay
|
32401-HA6-770 |
— | ||
|
17
|
17
32411-HA6-681 Cover |
32411-HA6-681 |
from US $4.74 |
||
|
19
|
19
32415-425-000 Cover a, magnetic switch |
32415-425-000 |
from US $3.33 |
||
|
20
|
20
35850-HA0-771 Switch assy.,star |
35850-HA0-771 |
from US $92.48 |
||
|
21
|
21
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
22
|
22
38251-HA6-681
Cover, fuse case
|
38251-HA6-681 |
— | ||
|
23
|
23
50326-HA6-000
Stay, connector
|
50326-HA6-000 |
— | ||
|
24
|
24
50334-HA0-000
Cushion,battery
|
50334-HA0-000 |
— | ||
|
25
|
25
83119-MG9-000 Collar, lock setting |
83119-MG9-000 |
from US $3.04 |
||
|
26
|
26
90052-ZA0-800 Washer, spring, 6mm |
90052-ZA0-800 |
from US $0.74 |
||
|
27
|
27
90130-HA6-000
Band, wire
|
90130-HA6-000 |
— | ||
|
28
|
28
94002-063900S Nut, hex., 6mm |
94002-063900S |
from US $0.52 |
||
|
29
|
29
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
30
|
30
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
31
|
31
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
|
33
|
33
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
