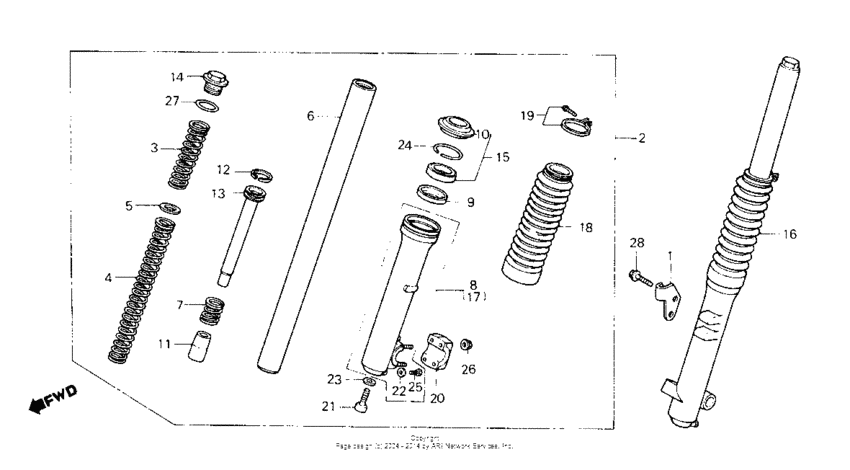

Front fork Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE042*HK200001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45453-HA6-000
Receiver
|
45453-HA6-000 |
— | ||
|
2
|
2
51400-HA6-681
Fork assy., r. fr.
|
51400-HA6-681 |
— | ||
|
3
|
3
51401-HA6-003
Spring, fr. fork
|
51401-HA6-003 |
— | ||
|
4
|
4
51402-HA6-003
Spring b, fr. fork
|
51402-HA6-003 |
— | ||
|
5
|
5
51403-KJ3-003
Seat, spring
|
51403-KJ3-003 |
— | ||
|
6
|
6
51410-HA6-003
Pipe comp.,fr.for
|
51410-HA6-003 |
— | ||
|
7
|
7
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
8
|
8
51420-HA6-681
Case, r. (lower)
|
51420-HA6-681 |
— | ||
|
9
|
9
51422-376-305
Ring, back-up
|
51422-376-305 |
— | ||
|
10
|
10
51425-473-003 Dust seal |
51425-473-003 |
from US $14.80 |
||
|
11
|
11
51432-447-731 Piece, oil locking |
51432-447-731 |
from US $14.21 |
||
|
12
|
12
51437-400-771 Ring, piston |
51437-400-771 |
from US $5.26 |
||
|
13
|
13
51440-HA6-003
Pipe,seat
|
51440-HA6-003 |
— | ||
|
14
|
14
51454-471-003
Bolt,fr.fork
|
51454-471-003 |
— | ||
|
15
|
15
51490-473-305 Seal set, fr. fork |
51490-473-305 |
from US $25.57 |
||
|
16
|
16
51500-HA6-681
Fork Assy., L. Fr.
|
51500-HA6-681 |
— | ||
|
17
|
17
51520-HA6-681
Case comp.,l.bott
|
51520-HA6-681 |
— | ||
|
18
|
18
51611-965-682
Boot,fr.fork
|
51611-965-682 |
— | ||
|
19
|
19
51612-434-000 Band,fr.fork boot |
51612-434-000 |
from US $7.25 |
||
|
20
|
20
51634-MA0-003 Holder, axle |
51634-MA0-003 |
from US $17.41 |
||
|
21
|
21
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $4.44 |
||
|
22
|
22
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
23
|
23
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
24
|
24
90601-369-000 Ring |
90601-369-000 |
from US $3.03 |
||
|
25
|
25
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
26
|
26
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $2.92 |
||
|
27
|
27
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
28
|
28
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.40 |
