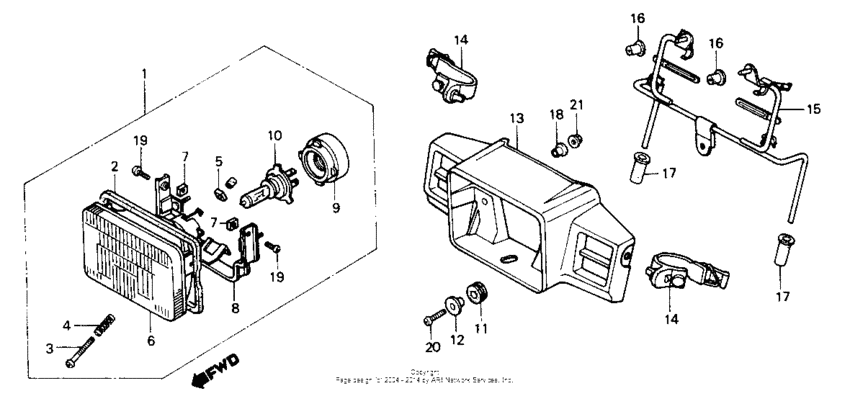

Headlight Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE042*HK200001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-HA2-671
Headlight assy.(1
|
33100-HA2-671 |
— | ||
|
3
|
3
33103-329-003 Screw |
33103-329-003 |
US $7.40 |
||
|
4
|
4
33107-KJ9-003
Spring
|
33107-KJ9-003 |
— | ||
|
5
|
5
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
6
|
6
33120-HA2-671
Headlight unit
|
33120-HA2-671 |
— | ||
|
7
|
7
33128-471-003 Nut, unit holder |
33128-471-003 |
from US $2.22 |
||
|
8
|
8
33153-HA2-671
Ring, setting
|
33153-HA2-671 |
— | ||
|
9
|
9
33180-HA2-671 Cover, rubber |
33180-HA2-671 |
US $16.56 |
||
|
10
|
10
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
10
|
10
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
11
|
11
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
12
|
12
61104-422-000 Collar, setting |
61104-422-000 |
from US $5.33 |
||
|
13
|
13
61301-HA6-681
Garnish, headlight
|
61301-HA6-681 |
— | ||
|
14
|
14
61309-KJ2-010
Band,holt case
|
61309-KJ2-010 |
— | ||
|
15
|
15
61310-HA6-680
Bracket, headlight
|
61310-HA6-680 |
— | ||
|
17
|
17
61312-358-300 Grommet,lt.case |
61312-358-300 |
from US $3.48 |
||
|
18
|
18
84706-415-000 Collar |
84706-415-000 |
from US $3.18 |
||
|
19
|
19
93500-050-100-H ScrewPAN, 5X10 |
93500-050-100-H |
from US $0.37 |
||
|
20
|
20
93500-060-200-G ScrewPAN, 6X20 |
93500-060-200-G |
from US $0.44 |
||
|
21
|
21
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
