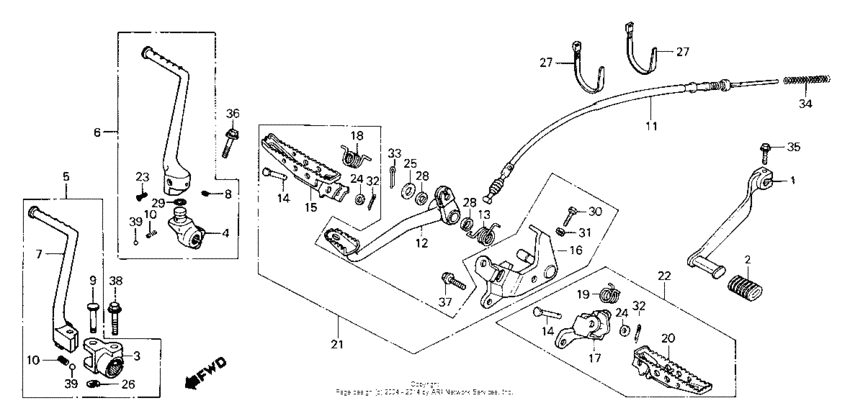

Step + pedal Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE042*HK200001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-HA0-680
Pedal comp.,chang
|
24700-HA0-680 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $5.62 |
||
|
4
|
4
28241-HA6-680
Joint, kick arm
|
28241-HA6-680 |
— | ||
|
6
|
6
28300-HA6-680
Arm, kick starter
|
28300-HA6-680 |
— | ||
|
8
|
8
28302-965-000 Plug, kick arm |
28302-965-000 |
from US $2.39 |
||
|
10
|
10
28333-124-000 Spring |
28333-124-000 |
from US $2.52 |
||
|
11
|
11
43470-HA6-770
Cable,foot brake
|
43470-HA6-770 |
— | ||
|
12
|
12
46500-HA6-000
Pedal comp.,brk.
|
46500-HA6-000 |
— | ||
|
13
|
13
46514-HA0-000
Spg.brk.pedal
|
46514-HA0-000 |
— | ||
|
14
|
14
50603-HA0-680
Pin step joint
|
50603-HA0-680 |
— | ||
|
15
|
15
50610-HA0-770
Step comp.,r.
|
50610-HA0-770 |
— | ||
|
16
|
16
50615-HA0-000
Plate,r step
|
50615-HA0-000 |
— | ||
|
17
|
17
50616-HA0-000
Plate, l. step
|
50616-HA0-000 |
— | ||
|
18
|
18
50617-HA0-680
Spring, r
|
50617-HA0-680 |
— | ||
|
19
|
19
50618-HA0-680
Spring, l
|
50618-HA0-680 |
— | ||
|
20
|
20
50620-HA0-770
Step comp.,l.
|
50620-HA0-770 |
— | ||
|
21
|
21
50630-HA0-770
Arm assy.,r.step
|
50630-HA0-770 |
— | ||
|
22
|
22
50640-HA0-770
Arm assy.,l.step
|
50640-HA0-770 |
— | ||
|
23
|
23
90104-965-003 Screw (6x28) |
90104-965-003 |
US $3.63 |
||
|
24
|
24
90450-147-000 Washer, thrust, 8mm |
90450-147-000 |
from US $2.37 |
||
|
25
|
25
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $2.22 |
||
|
27
|
27
91058-MG9-681 Band, self lock |
91058-MG9-681 |
from US $2.31 |
||
|
28
|
28
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
29
|
29
91353-671-003 O-ring14MM (ARAI) |
91353-671-003 |
from US $1.92 |
||
|
30
|
30
92025-06025-0A Bolt,hex.,6x25 |
92025-06025-0A |
from US $0.52 |
||
|
31
|
31
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
32
|
32
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
33
|
33
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
34
|
34
43467-HA0-000
Spring, rr.
|
43467-HA0-000 |
— | ||
|
35
|
35
90118-968-000 Bolt, flange (6x20) |
90118-968-000 |
from US $2.66 |
||
|
36
|
36
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
|
37
|
37
95801-1003500 Bolt, flange (10x35) |
95801-1003500 |
from US $0.81 |
||
|
39
|
39
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
