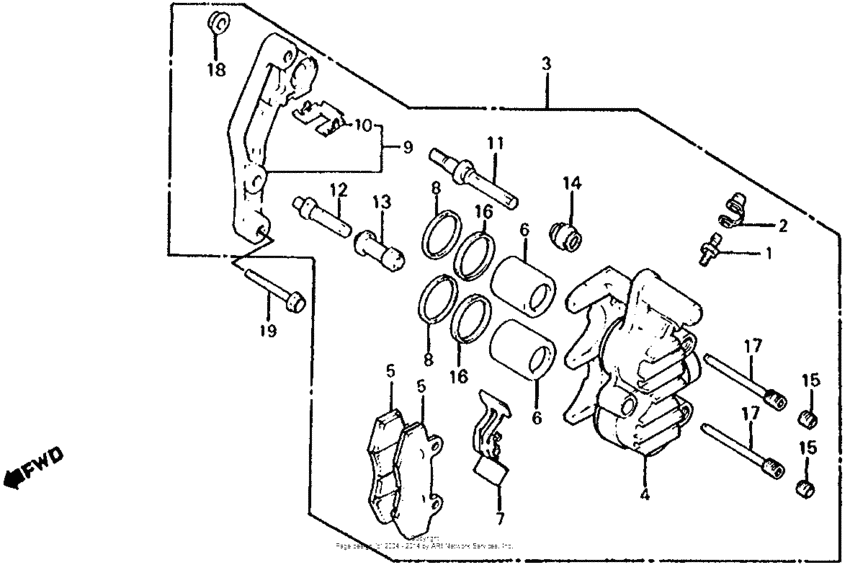

Front brake caliper (1) Diagram Honda ATC ATC350
- Model code
- ATC350X A
- Engine Capacity
- 350
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE080*FM000032 - JH3TE080*FM025531
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
451A0-KA3-731
Brake pad kit
|
451A0-KA3-731 |
— | ||
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.80 |
||
|
2
|
2
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $3.70 |
||
|
3
|
3
45100-HA5-007
Caliper, l. fr.
|
45100-HA5-007 |
— | ||
|
4
|
4
45101-MG3-006
Caliper comp.
|
45101-MG3-006 |
— | ||
|
5
|
5
45105-KA3-731 Pad |
45105-KA3-731 |
US $30.46 |
||
|
6
|
6
45107-MG3-016 Piston |
45107-MG3-016 |
from US $29.38 |
||
|
7
|
7
45108-GE2-006 Spring, pad |
45108-GE2-006 |
from US $7.10 |
||
|
8
|
8
45109-GE2-006 Dust seal |
45109-GE2-006 |
from US $4.59 |
||
|
9
|
9
45110-HA5-006
Bracket, l. fr.
|
45110-HA5-006 |
— | ||
|
10
|
10
45112-MG3-006 Retainer |
45112-MG3-006 |
from US $4.11 |
||
|
11
|
11
45131-MG3-006
Bolt a, pin
|
45131-MG3-006 |
— | ||
|
12
|
12
45131-166-016 Pin, bolt |
45131-166-016 |
from US $4.88 |
||
|
13
|
13
45132-166-016 Bush, pin |
45132-166-016 |
from US $3.77 |
||
|
14
|
14
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.92 |
||
|
15
|
15
45203-MG3-016 Plug, pin |
45203-MG3-016 |
from US $3.77 |
||
|
16
|
16
45209-GE2-006 Seal, piston |
45209-GE2-006 |
from US $4.59 |
||
|
17
|
17
45215-GE2-016 Pin, hanger |
45215-GE2-016 |
from US $6.81 |
||
|
18
|
18
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
19
|
19
95801-0805000 Bolt, flange, 8x50 |
95801-0805000 |
from US $0.81 |
