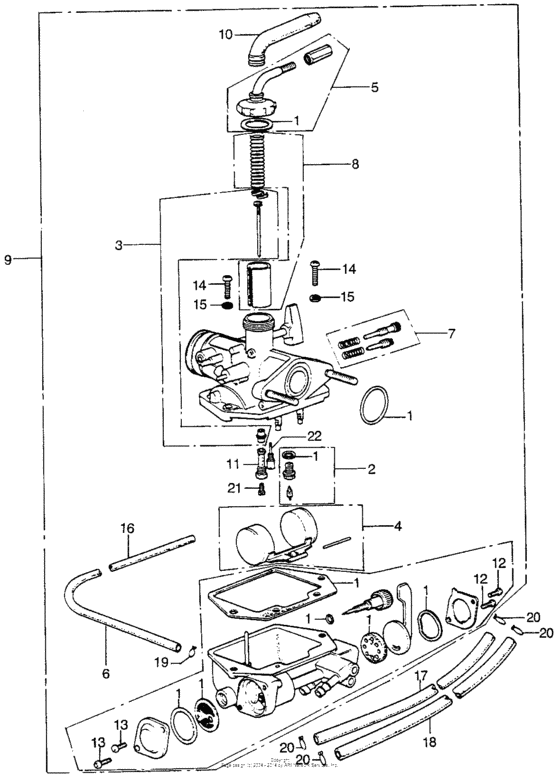

Carburetor Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-102-305 Gasket set |
16010-102-305 |
from US $25.70 |
||
|
2
|
2
16011-124-405
Float valve set
|
16011-124-405 |
— | ||
|
3
|
3
16012-937-004
Needle set,jet
|
16012-937-004 |
— | ||
|
4
|
4
16013-116-700 Float set |
16013-116-700 |
from US $27.34 |
||
|
5
|
5
16014-918-004
Top set
|
16014-918-004 |
— | ||
|
6
|
6
16015-102-700
Chamber set,float
|
16015-102-700 |
— | ||
|
7
|
7
16016-046-004
Screw set a
|
16016-046-004 |
— | ||
|
8
|
8
16022-937-004
Valve set, throttle
|
16022-937-004 |
— | ||
|
9
|
9
16100-937-004
Carburetor assy.
|
16100-937-004 |
— | ||
|
10
|
10
16118-121-014
Cap, cable sealing
|
16118-121-014 |
— | ||
|
11
|
11
16165-937-004
Holder,needle jet
|
16165-937-004 |
— | ||
|
12
|
12
93500-030-050-A Screw, pan, 3x5 |
93500-030-050-A |
from US $0.38 |
||
|
13
|
13
93500-030-070-A Screw, pan, 3x7 |
93500-030-070-A |
US $0.38 |
||
|
14
|
14
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
15
|
15
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
16
|
16
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $14.50 |
||
|
17
|
17
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $24.48 |
||
|
18
|
18
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $24.48 |
||
|
19
|
19
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
20
|
20
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
21
|
21
99114-076-0600
Jet,main #60
|
99114-076-0600 |
— | ||
|
22
|
22
99124-246-0350
Jet,slow
|
99124-246-0350 |
— |
