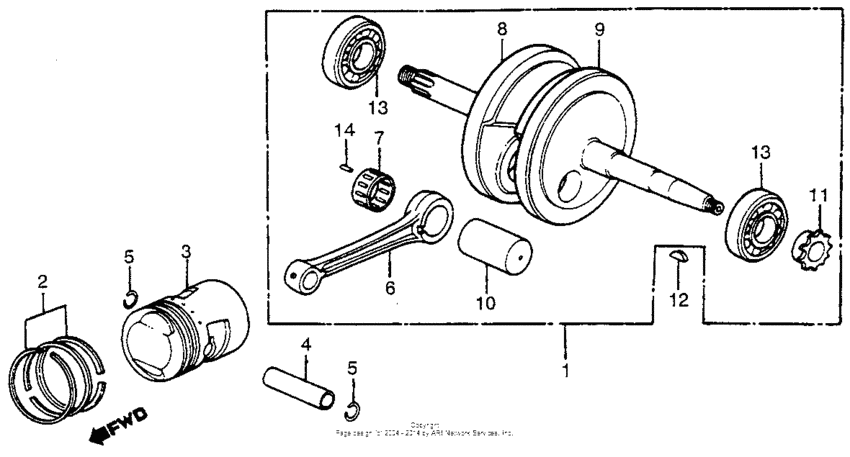

Crankshaft + piston Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1980
- Sales region
- USA
- Frame
- TB032000001 - TB032011706
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-098-761
Crankshaft
|
13000-098-761 |
— | ||
|
2
|
2
13010-087-023 Ring set (std) |
13010-087-023 |
from US $20.61 |
||
|
2
|
2
13020-087-023
Ring set (os) (0.25)
(Optional). |
13020-087-023 |
— | ||
|
2
|
2
13030-087-023
Ring set (os) (0.50)
(Optional). |
13030-087-023 |
— | ||
|
2
|
2
13040-087-023
Ring set (os) (0.75)
(Optional). |
13040-087-023 |
— | ||
|
2
|
2
13050-087-023
Ring set (1.00)
(Optional). |
13050-087-023 |
— | ||
|
3
|
3
13101-HB2-000
Piston (std)
|
13101-HB2-000 |
— | ||
|
3
|
3
13102-HB2-305
Piston (os) (0.25)
(Optional). |
13102-HB2-305 |
— | ||
|
3
|
3
13103-HB2-305
Piston (os) (0.50)
(Optional). |
13103-HB2-305 |
— | ||
|
3
|
3
13104-HB2-305
Piston (0.75)
(Optional). |
13104-HB2-305 |
— | ||
|
3
|
3
13105-HB2-305
Piston (1.00)
(Optional). |
13105-HB2-305 |
— | ||
|
4
|
4
13111-GB0-910 Pin, piston |
13111-GB0-910 |
from US $6.81 |
||
|
5
|
5
94601-13000 Clip, piston pin, 13mm |
94601-13000 |
from US $0.44 |
||
|
6
|
6
13201-036-010
Rod,connecting
|
13201-036-010 |
— | ||
|
7
|
7
13211-035-000 Retainer, roller |
13211-035-000 |
US $17.27 |
||
|
8
|
8
13311-125-300
Crankshaft,r.
|
13311-125-300 |
— | ||
|
9
|
9
13321-098-761
Crankshaft, l
|
13321-098-761 |
— | ||
|
10
|
10
13381-GB1-900
Pin, crank
|
13381-GB1-900 |
— | ||
|
11
|
11
14311-035-000 Sprocket (14t) |
14311-035-000 |
from US $11.25 |
||
|
12
|
12
90741-035-000 KEY |
90741-035-000 |
from US $3.77 |
||
|
13
|
13
91001-GF6-004 Bearing, radial ball, 6304 |
91001-GF6-004 |
from US $14.50 |
||
|
13
|
13
96100-6304000 Bearing, radial ball, 6304 |
96100-6304000 |
from US $8.44 |
||
|
14
|
14
91101-001-030 Roller, rod (2.5x10) |
91101-001-030 |
from US $2.29 |
