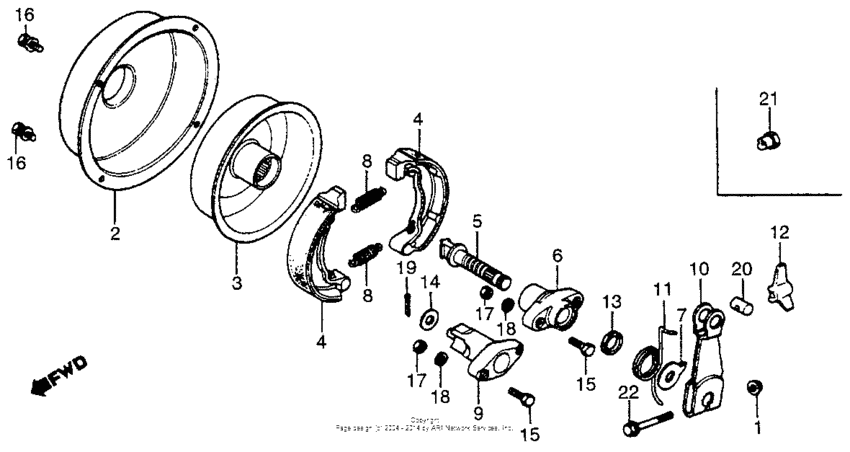

Rear brake drum Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1980
- Sales region
- USA
- Frame
- TB032000001 - TB032011706
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
2
|
2
40532-957-000
Cover,brake drum
|
40532-957-000 |
— | ||
|
3
|
3
42622-957-000
Drum comp., brake
|
42622-957-000 |
— | ||
|
4
|
4
43120-957-000
Shoe comp.,brake
|
43120-957-000 |
— | ||
|
5
|
5
43141-ME4-000
Cam rear brake
|
43141-ME4-000 |
— | ||
|
6
|
6
43143-957-010
Holder,brake cam
|
43143-957-010 |
— | ||
|
8
|
8
43151-329-000 Spring, brake shoe |
43151-329-000 |
from US $2.96 |
||
|
9
|
9
43153-957-000
Anchor,brake shoe
|
43153-957-000 |
— | ||
|
10
|
10
43410-957-020
Arm rr brake
|
43410-957-020 |
— | ||
|
11
|
11
43413-957-000
Spg.brake return
|
43413-957-000 |
— | ||
|
13
|
13
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.22 |
||
|
14
|
14
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
15
|
15
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
16
|
16
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
17
|
17
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
18
|
18
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
19
|
19
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
19
|
19
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
19
|
19
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
19
|
19
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
19
|
19
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
20
|
20
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
21
|
21
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
22
|
22
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
