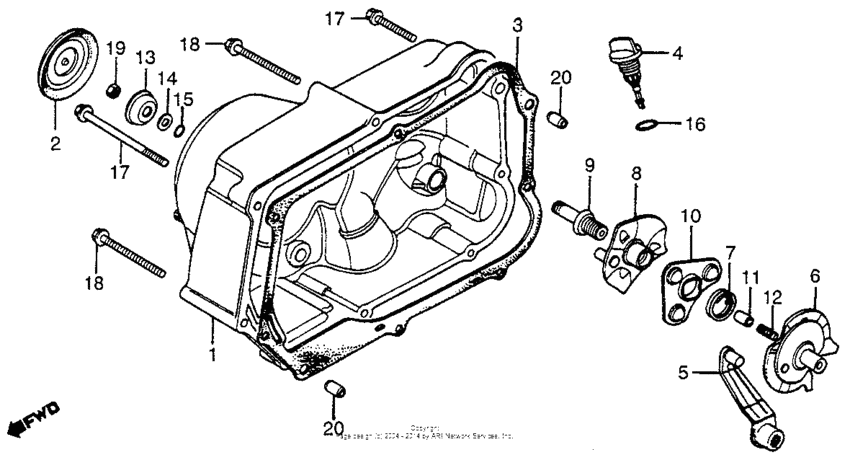

Right crankcase cover Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1980
- Sales region
- USA
- Frame
- TB032000001 - TB032011706
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-937-000
Cover, r. crankcase
|
11330-937-000 |
— | ||
|
2
|
2
11335-102-700 Protector, r |
11335-102-700 |
from US $10.06 |
||
|
3
|
3
11394-GW8-681 Gasket, r |
11394-GW8-681 |
US $14.01 |
||
| replacement | |||||
|
3
|
3
11394-GW8-682 Gasket, r |
11394-GW8-682 |
from US $13.02 |
||
|
4
|
4
15650-957-010
Gauge oil level
|
15650-957-010 |
— | ||
|
5
|
5
22811-040-020 Lever, clutch |
22811-040-020 |
from US $20.40 |
||
|
6
|
6
22820-918-000 Plate,clutch cam |
22820-918-000 |
US $23.81 |
||
| replacement | |||||
|
6
|
6
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
6
|
6
22820-918-010 Plate, clutch cam |
22820-918-010 |
US $13.47 |
||
| replacement | |||||
|
6
|
6
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
6
|
6
22820-918-020 Plate, clutch cam |
22820-918-020 |
from US $12.43 |
||
|
7
|
7
22825-046-000 Spring, cam plate side |
22825-046-000 |
from US $2.15 |
||
|
8
|
8
22830-041-000 Plate comp., clutch lifter |
22830-041-000 |
from US $10.21 |
||
|
9
|
9
22846-040-010 Bolt, clutch adj |
22846-040-010 |
from US $7.10 |
||
|
10
|
10
22860-046-000 Retainer, clutch ball |
22860-046-000 |
from US $5.92 |
||
|
11
|
11
25551-918-007 Through, oil |
25551-918-007 |
US $8.14 |
||
| replacement | |||||
|
11
|
11
25551-GEL-A80 Through, oil |
25551-GEL-A80 |
from US $4.22 |
||
|
12
|
12
25555-046-000 Spring, oil guide |
25555-046-000 |
US $2.37 |
||
|
13
|
13
90485-102-701 Washer |
90485-102-701 |
US $4.59 |
||
|
15
|
15
91306-HB3-003 O-ring (8x1.7) |
91306-HB3-003 |
from US $2.15 |
||
|
16
|
16
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.40 |
||
|
16
|
16
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4.14 |
||
|
17
|
17
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
18
|
18
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
19
|
19
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
20
|
20
9430108120 Pin a, dowel, 8x12 |
9430108120 |
from US $0.89 |
||
