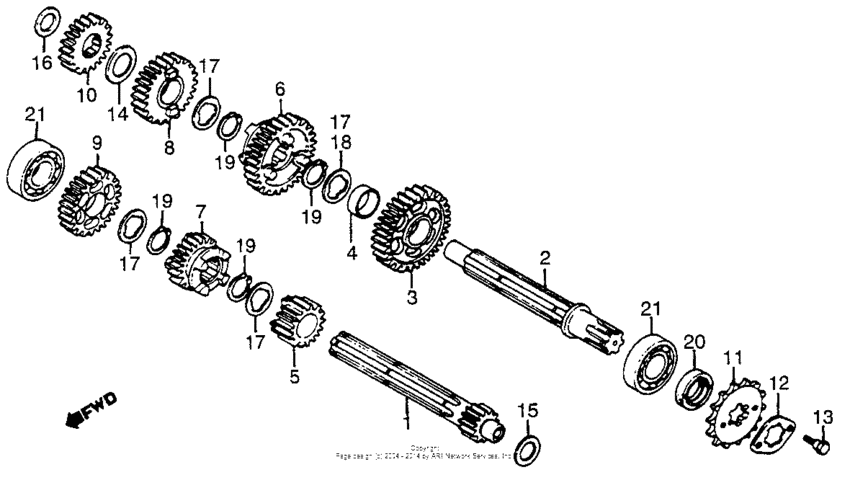

Transmission 82-85 Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB030*DC800006 - JH3TB030*DC827275
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-065-901 Shaft,main |
23211-065-901 |
US $68.98 |
||
|
2
|
2
23221-065-010
Shaft,counter
Use up to Engine SN 2812731 |
23221-065-010 |
— | ||
| replacement | |||||
|
2
|
2
23221-065-020 Ct/shaft,trans.Use up to Engine SN 2812731 |
23221-065-020 |
US $47.74 |
||
|
2
|
2
23221-065-020 Ct/shaft,trans.Use up to Engine SN 2812731 |
23221-065-020 |
US $47.74 |
||
|
3
|
3
23421-086-010
Gear,c.low
Use up to Engine SN 2812731 |
23421-086-010 |
— | ||
|
3
|
3
23421-086-020 Gear (36t)Use from Engine SN 2812732 |
23421-086-020 |
US $35.09 |
||
|
4
|
4
23422-041-000 CollarUse from Engine SN 2812732 |
23422-041-000 |
US $3.11 |
||
|
5
|
5
23431-065-901 Gear,m.second |
23431-065-901 |
US $34 |
||
|
6
|
6
23441-065-901 Gear,ct/shaft 2ndUse up to Engine SN 2812731 |
23441-065-901 |
US $36.72 |
||
|
7
|
7
23451-065-901 Gear,m-3(20t) |
23451-065-901 |
US $34 |
||
|
8
|
8
23461-065-902 Gear,c-3(27t) |
23461-065-902 |
US $34 |
||
|
9
|
9
23471-065-901 Gear,m.top |
23471-065-901 |
US $24.75 |
||
|
10
|
10
23481-065-901 Gear,c.top |
23481-065-901 |
US $25.98 |
||
|
11
|
11
23800-GB4-000 Sprocket (13t) |
23800-GB4-000 |
from US $20.71 |
||
|
12
|
12
23802-041-010 Plate |
23802-041-010 |
from US $2.44 |
||
|
13
|
13
90084-041-000 Bolt |
90084-041-000 |
from US $2.66 |
||
|
14
|
14
90446-357-000 Washer, thrust, 17.2mm |
90446-357-000 |
from US $5.48 |
||
|
15
|
15
90451-121-000 Washer (14mm) |
90451-121-000 |
from US $2.07 |
||
|
16
|
16
90451-141-000 Washer (13.5mm) |
90451-141-000 |
from US $2.96 |
||
|
17
|
17
90461-035-000 Washer (17mm)Use up to Engine SN 2812731 |
90461-035-000 |
from US $3.03 |
||
|
18
|
18
90462-035-000 Washer b (17mm)Use from Engine SN 2812732 |
90462-035-000 |
US $2.44 |
||
|
19
|
19
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
20
|
20
91203-035-005 Oil seal (17x29x5) |
91203-035-005 |
from US $5.77 |
||
|
21
|
21
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
||
