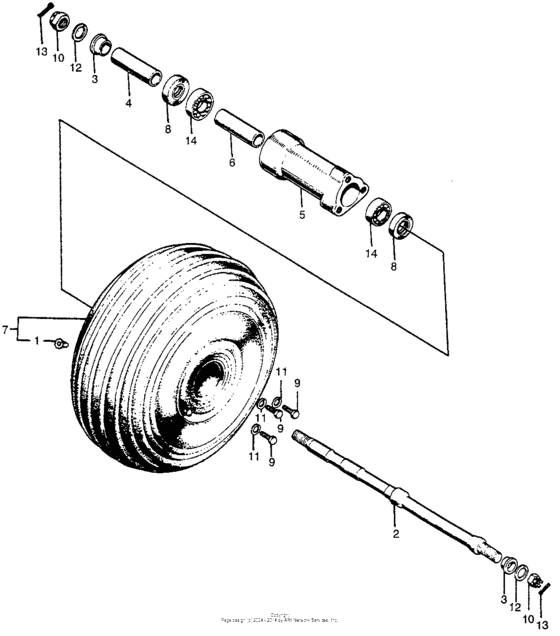

Front wheel + axle Diagram Honda ATC ATC90
- Model code
- ATC90 A
- Engine Capacity
- 90
- Sales region
- USA
- Базовая модель
- ATC90 A
- Frame
- US90100122 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC90
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42712-918-000
Tire plug
|
42712-918-000 |
— | ||
|
2
|
2
44301-942-000
Axle, fr. wheel
|
44301-942-000 |
— | ||
|
3
|
3
44302-918-000
Collar,front axle
|
44302-918-000 |
— | ||
|
4
|
4
44311-918-000
Colr, fr. wheel side
|
44311-918-000 |
— | ||
|
5
|
5
44601-918-030
Hub,front.wheel
|
44601-918-030 |
— | ||
|
6
|
6
44620-918-010
Collar,distance
|
44620-918-010 |
— | ||
|
7
|
7
42710-918-007
Tire,rear wheel
|
42710-918-007 |
— | ||
|
7
|
7
44710-918-007
Tire,front wheel
|
44710-918-007 |
— | ||
|
8
|
8
91257-HB3-003 Dust seal (35x20x7) |
91257-HB3-003 |
from US $6.66 |
||
|
9
|
9
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
10
|
10
94011-120-000-S Nut, castle, 12mm |
94011-120-000-S |
from US $1.04 |
||
|
11
|
11
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
12
|
12
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
13
|
13
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
14
|
14
96100-600-300-0 Bearing, radial ball, 6003 |
96100-600-300-0 |
from US $6.36 |
