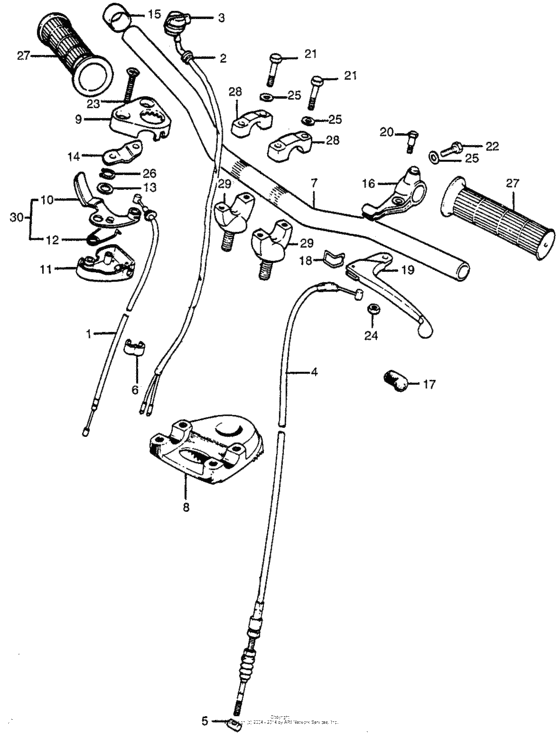

Handlebar + cables + control levers Diagram Honda ATC ATC90
- Model code
- ATC90 A
- Engine Capacity
- 90
- Sales region
- USA
- Базовая модель
- ATC90 A
- Frame
- US90100122 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-918-010
Cable,throttle
|
17910-918-010 |
— | ||
|
2
|
2
63312-ZA7-000 Grommet, tool |
63312-ZA7-000 |
US $5.39 |
||
|
3
|
3
35300-918-010
Switch assy.,kill
|
35300-918-010 |
— | ||
|
4
|
4
43460-943-305
Cable
|
43460-943-305 |
— | ||
|
5
|
5
43473-918-000
Joint, brake cable
|
43473-918-000 |
— | ||
|
6
|
6
45465-270-000 Clip, brake wire |
45465-270-000 |
from US $7.80 |
||
|
7
|
7
53100-918-020XW
Pipe,handle
|
53100-918-020XW |
— | ||
|
8
|
8
53132-102-000
Hldr, handle (lower)
|
53132-102-000 |
— | ||
|
9
|
9
53141-918-000XW
Cover,throt.lever
|
53141-918-000XW |
— | ||
|
11
|
11
53142-918-000
Case,lever
|
53142-918-000 |
— | ||
|
13
|
13
53147-918-000
Washer,10mm
|
53147-918-000 |
— | ||
|
14
|
14
53148-918-000
Seat,case
|
53148-918-000 |
— | ||
|
15
|
15
53152-918-000
Stopper,levercase
Use from Frame SN 117202 |
53152-918-000 |
— | ||
|
16
|
16
53172-918-000 Brkt.,brake lever |
53172-918-000 |
US $50.17 |
||
|
17
|
17
95010-16001 Cap.handle.lever |
95010-16001 |
from US $2.07 |
||
|
18
|
18
53180-918-010
Spring,lever lock
|
53180-918-010 |
— | ||
|
19
|
19
53190-958-000
Lever,brake
|
53190-958-000 |
— | ||
|
20
|
20
90114-310-000 Bolt |
90114-310-000 |
from US $5.92 |
||
|
21
|
21
90117-065-000 Bolt hex 6x28 |
90117-065-000 |
from US $2.96 |
||
|
22
|
22
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
23
|
23
93700-050-450-B Screw cross 5x45 |
93700-050-450-B |
US $0.74 |
||
|
24
|
24
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
94510-10000 CirclipEXTERNAL, 10MM |
94510-10000 |
from US $0.44 |
||
|
27
|
27
95011-14200 Glip,l handle |
95011-14200 |
from US $4.97 |
||
|
28
|
28
95014-21101 Holder a1, handlebar |
95014-21101 |
from US $4.44 |
||
|
30
|
30
53014-918-000
Lever set,thrott.
|
53014-918-000 |
— |
