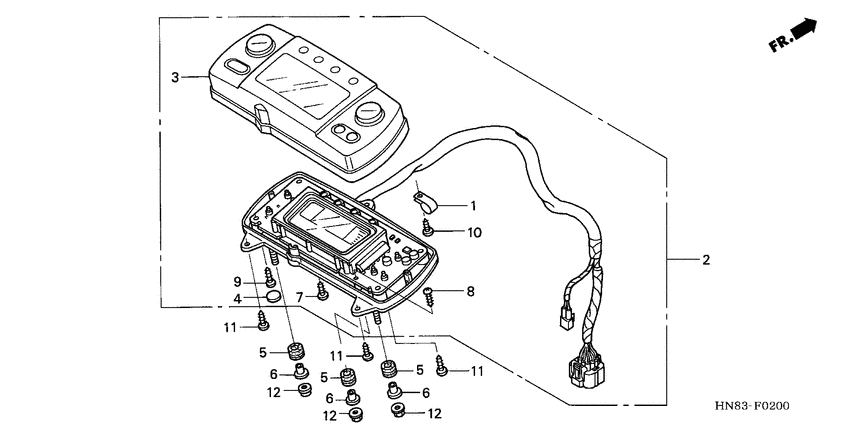

Meter Diagram Honda TRX 650 Rincon 650
- Model code
- TRX650FA3
- Engine Capacity
- 649
- Year
- 2003
- Sales region
- Australia
- Frame
- 478TE28U*3A000001 - 478TE28U*3A099999
- Engine
- TE28E8000001 - TE28E8099999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rincon 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37121-ML7-671 Clamp |
37121-ML7-671 |
from US $2.29 |
||
|
2
|
2
37200-HN8-651
Meter assy comb
|
37200-HN8-651 |
— | ||
|
3
|
3
37201-HN8-003 Case assy. (upper) |
37201-HN8-003 |
US $77.35 |
||
|
4
|
4
37212-HN0-A01 Cap |
37212-HN0-A01 |
from US $2.24 |
||
|
5
|
5
37215-HM5-670 Rubber, mounting |
37215-HM5-670 |
US $2.86 |
||
|
6
|
6
83601-357-000 Colr, cover setting |
83601-357-000 |
from US $4.44 |
||
|
7
|
7
37214-KV7-671 Screw, tap (3x14) |
37214-KV7-671 |
from US $0.96 |
||
|
8
|
8
90105-MT7-003 Screw, tap (3x12) |
90105-MT7-003 |
from US $0.73 |
||
|
9
|
9
90101-KY6-008 Screw, tap (3x14) |
90101-KY6-008 |
from US $0.05 |
||
|
10
|
10
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
||
|
11
|
11
93903-35320 ScrewTAPPING, 5X16 |
93903-35320 |
from US $0.37 |
||
|
12
|
12
94050-06070 Nut |
94050-06070 |
from US $0.52 |
