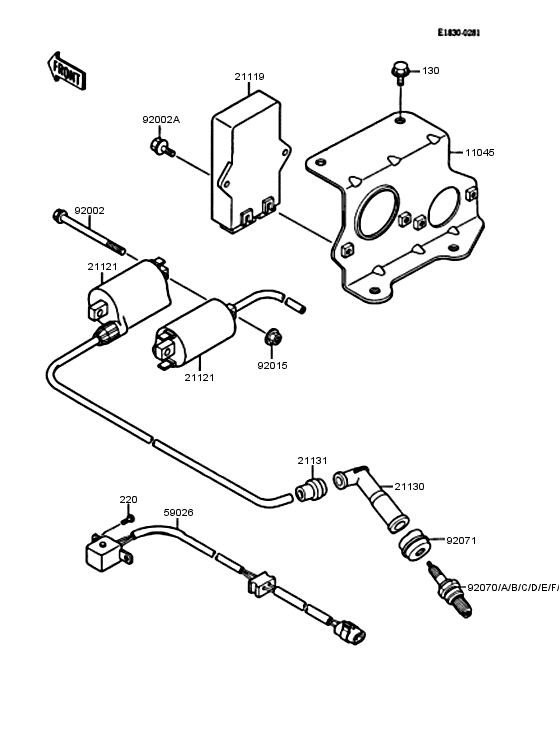

Ignition System Diagram Kawasaki KAF450 Mule 1000
- Model code
- KAF450-B1
- Engine Capacity
- 454
- Year
- 1989
- Sales region
- USA
- Colour
- 001
- Engine
- AF450BE 000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0610
BOLT-FLANGED,6X10
BOLT-FLANGED |
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED |
130BB0610 |
from US $1.11 |
||
|
220
|
220
220B0510
SCREW-PAN-CROSS,5X10
SCREW-PAN-CROS |
220B0510 |
— | ||
| replacement | |||||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10SCREW-PAN-CROS |
220AA0510 |
from US $0.48 |
||
|
11045
|
11045
11045-1940 BRACKETBRACKET |
11045-1940 |
US $20.70 |
||
|
21119
|
21119
21119-1231 IGNITERIGNITER |
21119-1231 |
US $626.65 |
||
|
21121
|
21121
21121-1162 COIL-IGNITIONCOIL-IGNITION |
21121-1162 |
from US $81.96 |
||
|
21130
|
21130
21130-1002
Cap-spark plug
CAP-SPARK PLUG |
21130-1002 |
— | ||
| replacement | |||||
|
21130
|
21130
21130-1010 Cap-spark plugCAP-SPARK PLUG |
21130-1010 |
from US $45.68 |
||
|
21131
|
21131
21131005 GROMMET,HIGH TENSIONGROMMET，HIGH TENSION |
21131005 |
US $7.80 |
||
|
59026
|
59026
59026-1089
COIL-PULSING
COIL-PULSING |
59026-1089 |
— | ||
|
92002
|
92002
92002-1568 BOLT,6X80BOLT，6X80 |
92002-1568 |
from US $3.48 |
||
| replacement | |||||
|
92002
|
92002
132BB0680 BOLT,6X80BOLT，6X80 |
132BB0680 |
from US $3.48 |
||
|
92002A
|
92002A
92002-1569
BOLT-FLANGED-SMALL,6X
BOLT，6X12 |
92002-1569 |
— | ||
| replacement | |||||
|
92002A
|
92002A
132BB0612 BOLT-FLANGED-SMALL,6XBOLT，6X12 |
132BB0612 |
from US $0.95 |
||
|
92015
|
92015
92015-1237 NUT,FLANGED,6MM,BLACKNUT，FLANGED，6MM，BLACK; ND |
92015-1237 |
US $2.84 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNUT，FLANGED，6MM，BLACK; ND |
92015-1233 |
from US $3.90 |
||
|
92070A
|
92070A
92070-1013 SPARK PLUG D7EAPLUG-SPARK，D7EA(NGK) |
92070-1013 |
US $31.10 |
||
| replacements | |||||
|
92070A
|
92070A
D7EA SPARK PLUG D7EAPLUG-SPARK，D7EA(NGK) |
D7EA |
US $31.10 |
||
|
92070A
|
92070A
92070-1165 SPARK PLUG DR7EAPLUG-SPARK，D7EA(NGK) |
92070-1165 |
US $7 |
||
|
92070C
|
92070C
92070-1146 PLUG-SPARK,D6EA(NGK)PLUG-SPARK，D6EA(NGK) |
92070-1146 |
US $19.60 |
||
|
92070F
|
92070F
92070-1163
Plug-spark,dr6ea(ngk)
PLUG-SPARK，DR6EA(NGK) |
92070-1163 |
— | ||
|
92070G
|
92070G
92070-1165 SPARK PLUG DR7EAPLUG-SPARK，DR7EA(NGK) |
92070-1165 |
US $7 |
||
|
92071
|
92071
92071-1146 GROMMET,PLUG CAPGROMMET，PLUG CAP |
92071-1146 |
from US $7.44 |
||
