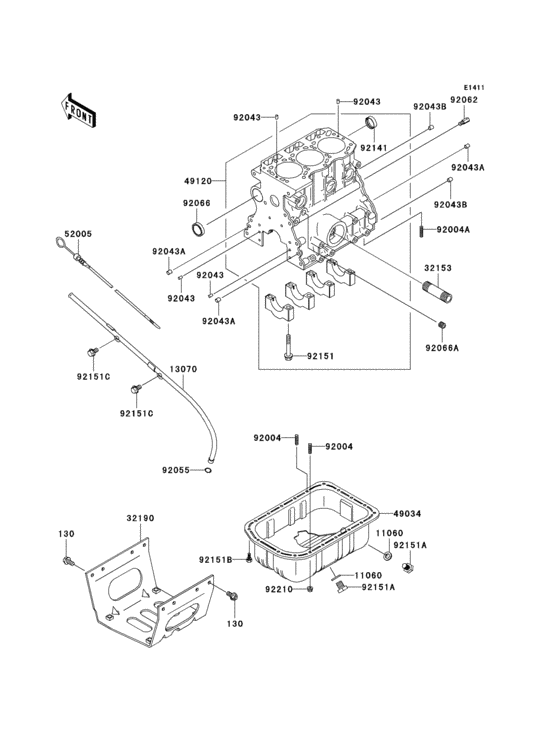

Crankcase Diagram Kawasaki KAF950 Mule 3010 Diesel 4X4
- Model code
- KAF950D8F
- Engine Capacity
- 950
- Year
- 2008
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Diesel 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130
|
130
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
11060
|
11060
11060-1942 GASKET,OIL DRAIN BOLT |
11060-1942 |
from US $2.79 |
||
|
13070
|
13070
13070-1350 GUIDE,GAUGE |
13070-1350 |
from US $54.59 |
||
|
32153
|
32153
32153-1355 PIPE,OIL FILTER |
32153-1355 |
from US $6.22 |
||
|
32190
|
32190
32190-1187 BRACKET-ENGINE |
32190-1187 |
US $90.39 |
||
|
49034
|
49034
49034-0024 PAN-OIL |
49034-0024 |
from US $123.48 |
||
|
49120
|
49120
49120-0008 CRANKCASE-COMP |
49120-0008 |
US $1,347.52 |
||
| replacement | |||||
|
49120
|
49120
49120-0817 CRANKCASE-COMP |
49120-0817 |
from US $977.76 |
||
|
52005
|
52005
52005-1139 GAUGE,OIL |
52005-1139 |
from US $26.77 |
||
|
92004
|
92004
92004-1261 STUD,6X10 |
92004-1261 |
from US $1.40 |
||
|
92004A
|
92004A
92004-1262 STUD,6X14 |
92004-1262 |
from US $1.40 |
||
|
92043
|
92043
92043-1609 PIN,6MM |
92043-1609 |
from US $1.40 |
||
|
92043A
|
92043A
92043-1610 PIN,8MM |
92043-1610 |
from US $1.40 |
||
|
92043B
|
92043B
92043-1611 PIN,8MM |
92043-1611 |
from US $1.40 |
||
|
92055
|
92055
92055-1625 RING-O |
92055-1625 |
from US $1.40 |
||
|
92062
|
92062
92062-1088 NOZZLE |
92062-1088 |
from US $6.84 |
||
|
92066
|
92066
92066-1526 PLUG |
92066-1526 |
from US $6.22 |
||
|
92066A
|
92066A
92066-1527 PLUG,CRANKCASE |
92066-1527 |
from US $1.87 |
||
|
92141
|
92141
92141-1053 BUSHING,CRANKCASE |
92141-1053 |
from US $4.05 |
||
|
92151
|
92151
92151-1655 BOLT,CRANKSHAFT |
92151-1655 |
from US $1.56 |
||
|
92151A
|
92151A
92151-1656 BOLT,OIL DRAIN BOLT |
92151-1656 |
from US $1.71 |
||
|
92151B
|
92151B
92151-1657 BOLT,6X12 |
92151-1657 |
from US $1.40 |
||
|
92151C
|
92151C
92151-1658 BOLT,8X14 |
92151-1658 |
from US $1.40 |
||
|
92210
|
92210
92210-1208 NUT,6MM |
92210-1208 |
from US $1.40 |
||
