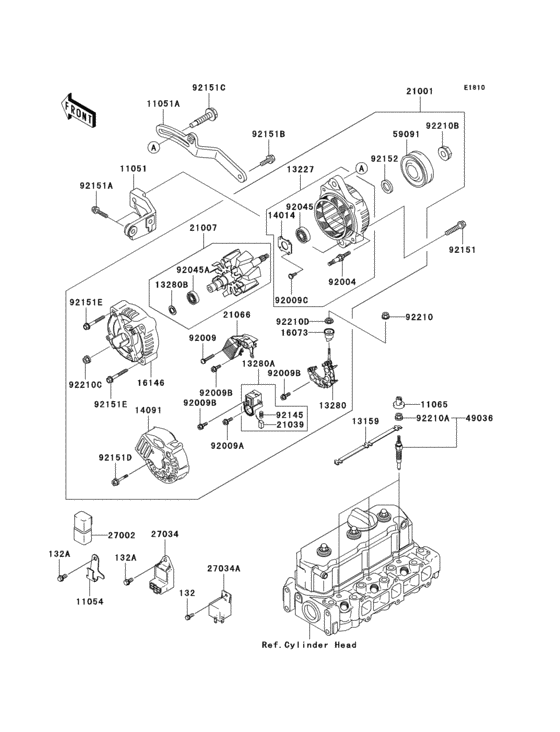

Generator(1/2) Diagram Kawasaki KAF950 Mule 3010 Diesel 4X4
- Model code
- KAF950D8F
- Engine Capacity
- 950
- Year
- 2008
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Diesel 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0512 BOLT-FLANGED-SMALL,5X |
132J0512 |
US $2.83 |
||
| replacement | |||||
|
132
|
132
132BB0512 BOLT-FLANGED-SMALL,5X |
132BB0512 |
from US $0.95 |
||
|
132A
|
132A
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
11051
|
11051
11051-1568 BRACKET,LWR |
11051-1568 |
from US $21.15 |
||
|
11051A
|
11051A
11051-1569 BRACKET,UPP |
11051-1569 |
from US $18.98 |
||
|
11054
|
11054
11054-7512 BRACKET |
11054-7512 |
from US $11.98 |
||
|
11065
|
11065
11065-1150 CAP,GLOW |
11065-1150 |
from US $1.71 |
||
|
13159
|
13159
13159-1066 CONNECTOR |
13159-1066 |
from US $15.87 |
||
|
13227
|
13227
13227-1139 HOUSING,ALTERNATOR |
13227-1139 |
from US $461.89 |
||
|
13280
|
13280
13280-1173 HOLDER,RECTIFIER |
13280-1173 |
from US $321.93 |
||
|
13280A
|
13280A
13280-1174 HOLDER,ALTERNATOR BRU |
13280-1174 |
from US $54.59 |
||
|
13280B
|
13280B
13280-1175 HOLDER,BEARING |
13280-1175 |
from US $4.51 |
||
|
14014
|
14014
14014-1149 PLATE-POSITION |
14014-1149 |
from US $8.87 |
||
|
14091
|
14091
14091-1207 COVER,REAR END |
14091-1207 |
from US $65.32 |
||
|
16073
|
16073
16073-1122 INSULATOR |
16073-1122 |
from US $14.77 |
||
|
16146
|
16146
16146-1214 COVER-ASSY,RECTIFIER |
16146-1214 |
from US $118.20 |
||
|
21001
|
21001
21001-1176 GENERATOR |
21001-1176 |
from US $493.92 |
||
|
21007
|
21007
21007-1368 ROTOR,ALTERNATOR |
21007-1368 |
from US $388.80 |
||
|
21039
|
21039
21039-1068 BRUSH |
21039-1068 |
from US $9.79 |
||
|
21066
|
21066
21066-1122 REGULATOR-VOLTAGE |
21066-1122 |
from US $219.28 |
||
|
27002
|
27002
27002-1086 RELAY-ASSY |
27002-1086 |
from US $29.47 |
||
|
27034
|
27034
27034-1065 RELAY,HEATING TIMER |
27034-1065 |
from US $84.30 |
||
|
27034A
|
27034A
27034-1066 RELAY,GLOW |
27034-1066 |
from US $73.41 |
||
|
49036
|
49036
49036-1051 PLUG-GLOW |
49036-1051 |
from US $60.48 |
||
| replacement | |||||
|
49036
|
49036
49036-0001 PLUG-GLOW |
49036-0001 |
from US $65.32 |
||
|
59091
|
59091
59091-1106 PULLEY,ALTERNATOR |
59091-1106 |
from US $37.48 |
||
|
92004
|
92004
92004-1273 STUD,ALTERNATOR HOUSI |
92004-1273 |
from US $11.98 |
||
|
92009
|
92009
92009-1921 SCREW |
92009-1921 |
from US $1.40 |
||
|
92009A
|
92009A
92009-1922 SCREW |
92009-1922 |
from US $1.40 |
||
|
92009B
|
92009B
92009-1923 SCREW |
92009-1923 |
from US $1.40 |
||
|
92009C
|
92009C
92009-1924 SCREW,POSITION PLATE |
92009-1924 |
from US $1.56 |
||
|
92045
|
92045
92045-1398 BEARING-BALL |
92045-1398 |
from US $19.44 |
||
|
92045A
|
92045A
92045-1399 BEARING-BALL |
92045-1399 |
from US $24.88 |
||
|
92145
|
92145
92145-1312 SPRING,ALTERNATOR BRU |
92145-1312 |
from US $2.79 |
||
|
92151
|
92151
92151-1691 BOLT,10X40 |
92151-1691 |
from US $1.56 |
||
|
92151A
|
92151A
92151-1692 BOLT,8X25 |
92151-1692 |
from US $1.40 |
||
|
92151B
|
92151B
92151-1693 BOLT,8X20 |
92151-1693 |
from US $1.40 |
||
|
92151C
|
92151C
92151-1694 BOLT,8X45 |
92151-1694 |
from US $1.40 |
||
|
92151D
|
92151D
92151-1715 Bolt |
92151-1715 |
from US $1.56 |
||
|
92151E
|
92151E
92151-1716 Bolt |
92151-1716 |
from US $2.65 |
||
|
92152
|
92152
92152-1230 COLLAR |
92152-1230 |
from US $7.46 |
||
|
92210
|
92210
92210-1210 NUT,6MM |
92210-1210 |
from US $1.40 |
||
|
92210A
|
92210A
92210-1218 NUT,GLOW PLUG,4MM |
92210-1218 |
from US $1.40 |
||
|
92210B
|
92210B
92210-1232 NUT,PULLEY |
92210-1232 |
from US $5.13 |
||
|
92210C
|
92210C
92210-1233 NUT |
92210-1233 |
from US $1.56 |
||
|
92210D
|
92210D
92210-1234 NUT |
92210-1234 |
from US $1.87 |
||
