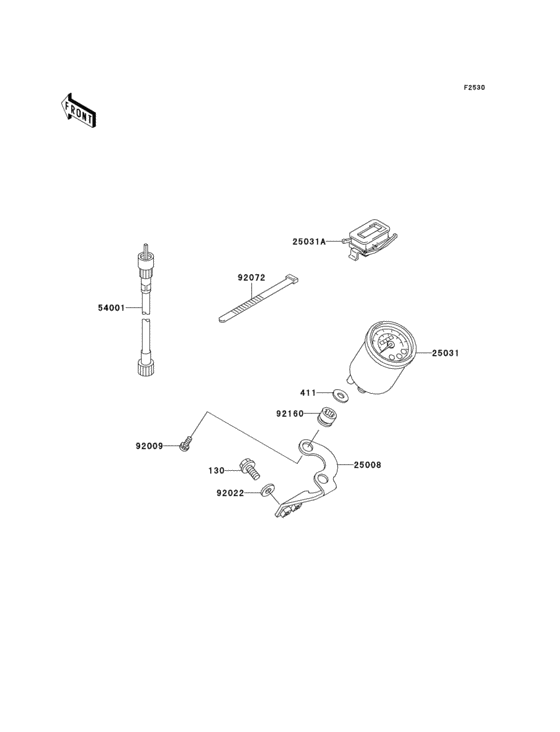

Meter(s) Diagram Kawasaki KAF950 Mule 3010 Diesel 4X4
- Model code
- KAF950D8F
- Engine Capacity
- 950
- Year
- 2008
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Diesel 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
|
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
25008
|
25008
25008-1228 BRACKET-METER |
25008-1228 |
from US $25.82 |
||
|
25031
|
25031
25031-1190 METER-ASSY,MPH |
25031-1190 |
from US $178.85 |
||
|
25031A
|
25031A
25031-7506 METER-ASSY,HOURS |
25031-7506 |
US $93.64 |
||
| replacement | |||||
|
25031A
|
25031A
25031-0637 METER-ASSY,HOURS |
25031-0637 |
from US $112.57 |
||
|
54001
|
54001
54001-1135 CABLE-SPEEDOMETER |
54001-1135 |
from US $30.01 |
||
| replacement | |||||
|
54001
|
54001
54001-0040 Cable-Speedometer |
54001-0040 |
US $54.06 |
||
|
92009
|
92009
92009-3740 SCREW,5X12 |
92009-3740 |
from US $3.01 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0 |
92022-1093 |
from US $1.43 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92160
|
92160
92160-1461 DAMPER |
92160-1461 |
from US $5.23 |
||
