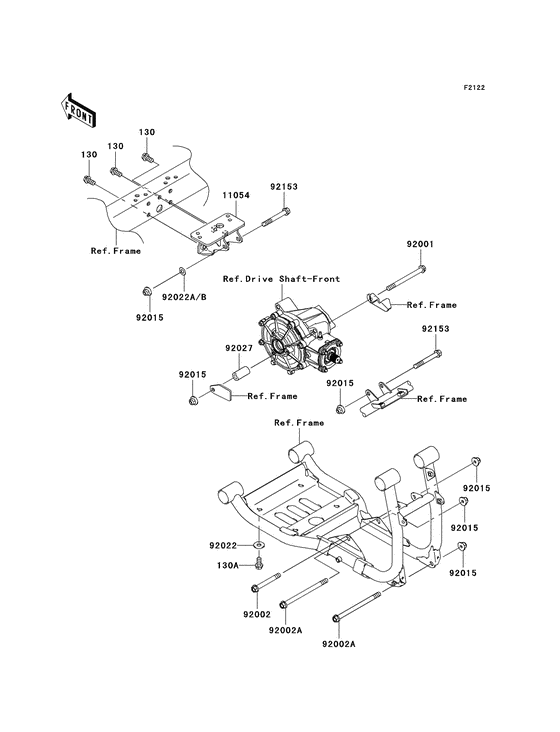

Engine mount Diagram Kawasaki KAF950 Mule 4010 Diesel 4X4
- Model code
- KAF950FAF
- Engine Capacity
- 950
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Diesel 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA1020 BOLT-FLANGED,10X20Bolt-flanged,10x20; |
130BA1020 |
from US $1.09 |
||
|
130A
|
130A
130BB1020 BOLT-FLANGEDBolt-flanged,10x20; |
130BB1020 |
from US $1.40 |
||
|
11055
|
11055
11055-1469 BRACKET,FRONT GEAR CABracket,front gear case; |
11055-1469 |
US $37.40 |
||
| replacement | |||||
|
11055
|
11055
11054-7506 BRACKET,FRONT GEAR CABracket,front gear case; |
11054-7506 |
US $48.45 |
||
|
92001
|
92001
92001-1603 BOLT,FLANGED,10X115Bolt,flanged,10x115; |
92001-1603 |
from US $6.22 |
||
|
92002
|
92002
92002-1764 BOLT,FLANGED,10X80Bolt,flanged,10x80; |
92002-1764 |
from US $4.51 |
||
|
92002A
|
92002A
92002-1765 BOLT,FLANGED,10X145Bolt,flanged,10x145; |
92002-1765 |
from US $6.68 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $7.04 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BLWasher,10.5x26x2.3,black; |
92022-1396 |
from US $1.90 |
||
|
92022A
|
92022A
92022-1649 WASHER,10.2X20X0.5Washer,10.2x20x0.5; |
92022-1649 |
from US $2.69 |
||
|
92022B
|
92022B
92022-239 WASHER,PLAINWasher,10.5x20x1; |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1518 COLLAR,11X20X39Collar,11x20x39; |
92027-1518 |
from US $11.20 |
||
|
92153
|
92153
92153-1384 BOLT,FLANGED,10X75Bolt,flanged,10x75; |
92153-1384 |
from US $3.27 |
||
