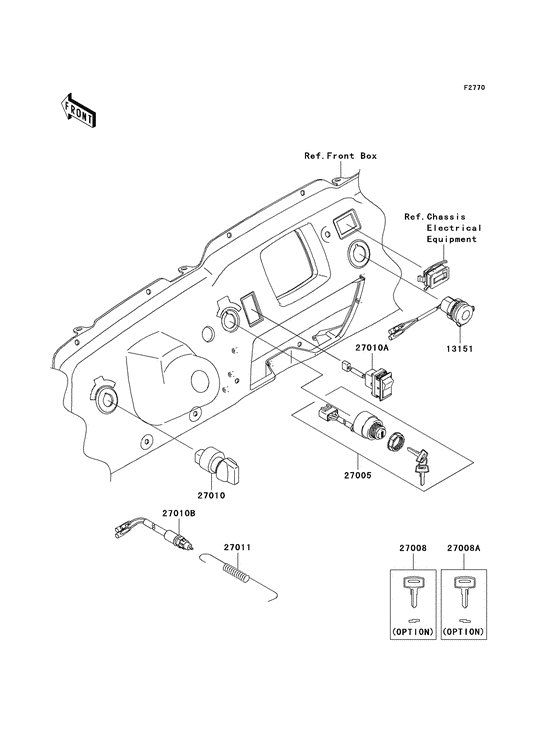

Ignition switch Diagram Kawasaki KRF750 Teryx 750 4X4
- Model code
- KRF750C8F
- Engine Capacity
- 749
- Year
- 2008
- Sales region
- USA
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13151
|
13151
13151-0003 SWITCH-COMP,D.C.TERMISwitch-comp,d.c.terminal; |
13151-0003 |
from US $95.80 |
||
|
27005
|
27005
27005-0036 SWITCH-ASSY-IGNITION |
27005-0036 |
from US $76.36 |
||
|
27008
|
27008
27008-1153 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1153 |
US $15.71 |
||
| replacement | |||||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1157 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1157 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1042 |
from US $12.83 |
||
|
27010
|
27010
27010-0067 SWITCH,HEAD LAMPSwitch,head lamp; |
27010-0067 |
US $78.18 |
||
|
27010A
|
27010A
27010-0068 SWITCH,2/4WDSwitch,2/4wd; |
27010-0068 |
from US $91.76 |
||
|
27010B
|
27010B
27010-1475 SWITCH,REAR BRAKESwitch,rear brake; |
27010-1475 |
from US $22.90 |
||
|
27011
|
27011
27011006 SPRING BRAKE LAMP SWSpring,brake lamp switch; |
27011006 |
from US $6.97 |
||
