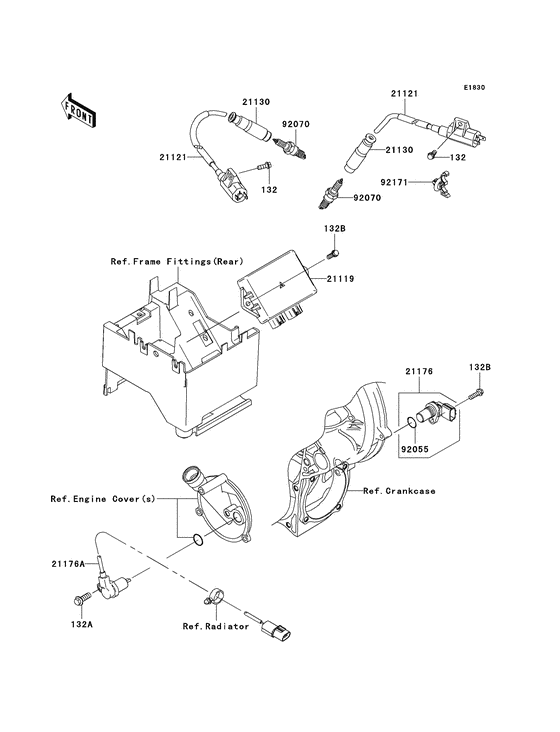

Ignition System Diagram Kawasaki KRF750 Teryx 750 4X4
- Model code
- KRF750C8F
- Engine Capacity
- 749
- Year
- 2008
- Sales region
- USA
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x16; |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132BA0822 BOLT-FLANGED-SMALLBolt-flanged-small,8x22; |
132BA0822 |
from US $1.27 |
||
|
132B
|
132B
132BD0620 BOLT-FLANGED-SMALLBolt-flanged-small,6x20; |
132BD0620 |
from US $1.11 |
||
|
21119
|
21119
21119-0092
IGNITER
|
21119-0092 |
— | ||
|
21121
|
21121
21121-1306 COIL-IGNITION,RR |
21121-1306 |
from US $47.09 |
||
|
21130
|
21130
21130-1071 Cap-spark plug |
21130-1071 |
from US $24.09 |
||
|
21176
|
21176
21176-1104 SENSOR,SPEEDSensor,speed; |
21176-1104 |
from US $108.20 |
||
|
21176A
|
21176A
21176-1109 SENSOR,REVERSESensor,reverse; |
21176-1109 |
from US $73.09 |
||
|
92055
|
92055
92055-1718 RING-O |
92055-1718 |
from US $1.68 |
||
|
92070
|
92070
92070-1209 SPARK PLUG, CR7E(NGK)Plug-spark,cr7e(ngk); |
92070-1209 |
from US $9 |
||
|
92171
|
92171
92171-0453 CLAMP |
92171-0453 |
US $4.47 |
