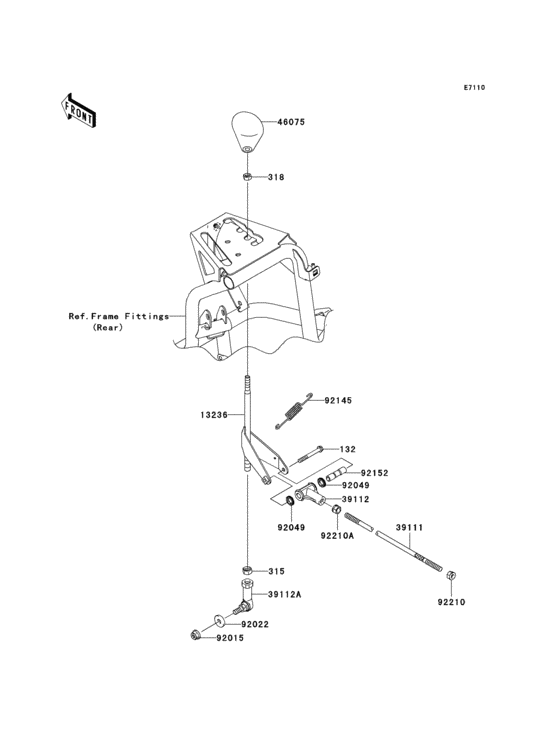

Control Diagram Kawasaki KRF750 Teryx 750 4X4
- Model code
- KRF750C8F
- Engine Capacity
- 749
- Year
- 2008
- Sales region
- USA
- Colour
- Colored Plastic Sunbeam Red (6B)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BB0650 BOLT-FLANGED-SMALL |
132BB0650 |
from US $1.27 |
||
|
315
|
315
315AA1000 NUT-HEX-FINE |
315AA1000 |
from US $1.01 |
||
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MM |
318BA0800 |
from US $0.63 |
||
|
13236
|
13236
13236-0152 LEVER-COMP |
13236-0152 |
from US $40.90 |
||
|
39111
|
39111
39111-0040 ROD-TIE |
39111-0040 |
from US $9.95 |
||
|
39112A
|
39112A
39112-1084 RODEND-TIE,CONTROL PI |
39112-1084 |
US $29.72 |
||
| replacement | |||||
|
39112A
|
39112A
39112-0019 RODEND-TIE,CONTROL PI |
39112-0019 |
from US $34.78 |
||
|
46075
|
46075
46075-0046 GRIP,SHIFT |
46075-0046 |
US $34 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-276 WASHER,PLAIN,8MM |
92022-276 |
from US $6.81 |
||
|
92049
|
92049
92049-1458 SEAL-OIL |
92049-1458 |
from US $6.84 |
||
|
92145
|
92145
92145-0130 SPRING |
92145-0130 |
from US $2.33 |
||
|
92152
|
92152
92152-1222 COLLAR,RODEND-TIE |
92152-1222 |
from US $4.67 |
||
|
92210
|
92210
92210-1242 NUT,RH,THREAD 8MM |
92210-1242 |
from US $1.11 |
||
|
92210A
|
92210A
92210-1284 NUT,LH,THREAD 8MM |
92210-1284 |
from US $1.24 |
||
