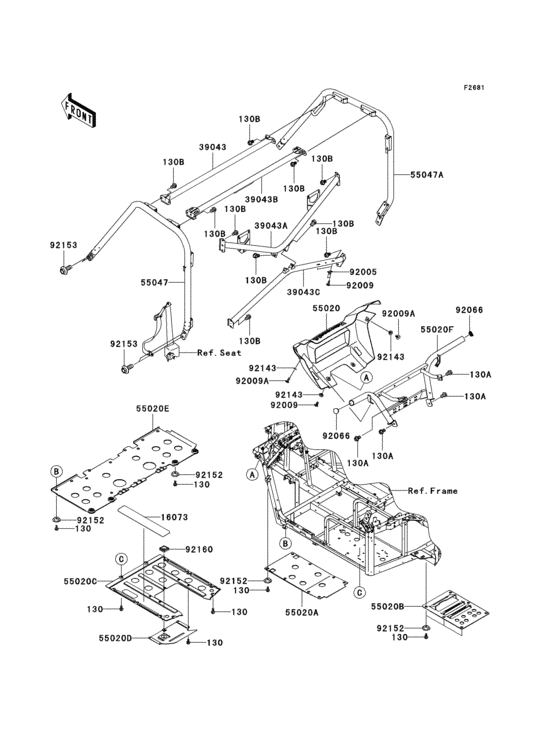

Guards/cab frame Diagram Kawasaki KRF750 Teryx 750 4X4
- Model code
- KRF750D8F
- Engine Capacity
- 749
- Year
- 2008
- Sales region
- Canada
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
130A
|
130A
130BB1016 BOLT-FLANGED,10X16 |
130BB1016 |
from US $1.56 |
||
|
130B
|
130B
130CB1014 BOLT-FLANGED,10X14 |
130CB1014 |
from US $1.40 |
||
|
39043
|
39043
39043-0001-388 CROSSMEMBER-COMP,UPP, |
39043-0001-388 |
US $83.42 |
||
|
39043A
|
39043A
39043-0005-388 CROSSMEMBER-COMP,RR,U |
39043-0005-388 |
US $248.76 |
||
|
39043B
|
39043B
39043-0007-388 CROSSMEMBER-COMP,UPP, |
39043-0007-388 |
US $99.45 |
||
|
39043C
|
39043C
39043-0008-388 CROSSMEMBER-COMP,RR,L |
39043-0008-388 |
US $208.37 |
||
|
55020
|
55020
55020-0297 GUARD,FRONT COVER |
55020-0297 |
US $113.53 |
||
| replacement | |||||
|
55020
|
55020
55020-0520 GUARD,FRONT COVER |
55020-0520 |
US $136.78 |
||
|
55020A
|
55020A
55020-0301 GUARD,SKID,FR |
55020-0301 |
US $50.90 |
||
|
55020B
|
55020B
55020-0402 GUARD,SKID,RR |
55020-0402 |
US $30.85 |
||
|
55020C
|
55020C
55020-0437 GUARD,SKID,MIDDLE,LH |
55020-0437 |
US $160.29 |
||
|
55020D
|
55020D
55020-0438 GUARD,ENGINE,SUB |
55020-0438 |
US $425.51 |
||
|
55020E
|
55020E
55020-0448 GUARD,SKID,MIDDLE |
55020-0448 |
US $113.53 |
||
| replacement | |||||
|
55020E
|
55020E
55020-0522 GUARD,SKID,MIDDLE |
55020-0522 |
US $113.53 |
||
|
55020F
|
55020F
55020-0477-388 GUARD,FRONT PIPE,W.BL |
55020-0477-388 |
US $176.98 |
||
|
55047
|
55047
55047-0011-388 BAR-COMP,LH,T.BLACK |
55047-0011-388 |
US $230.06 |
||
| replacement | |||||
|
55047
|
55047
55047-0021-388 BAR-COMP,LH,T.BLACK |
55047-0021-388 |
US $276.64 |
||
|
55047A
|
55047A
55047-0012-388 BAR-COMP,RH,T.BLACK |
55047-0012-388 |
US $230.06 |
||
| replacement | |||||
|
55047A
|
55047A
55047-0022-388 BAR-COMP,RH,T.BLACK |
55047-0022-388 |
US $230.06 |
||
|
92005
|
92005
92005-0077 FITTING |
92005-0077 |
US $4.64 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5 |
||
|
92066
|
92066
92066-0114 PLUG |
92066-0114 |
US $1.66 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92152
|
92152
92152-0512 COLLAR |
92152-0512 |
from US $1.09 |
||
|
92153
|
92153
92153-1282 BOLT,FLANGED,14X36 |
92153-1282 |
from US $4.20 |
||
|
92160
|
92160
92160-1772 DAMPER |
92160-1772 |
from US $11.10 |
||
