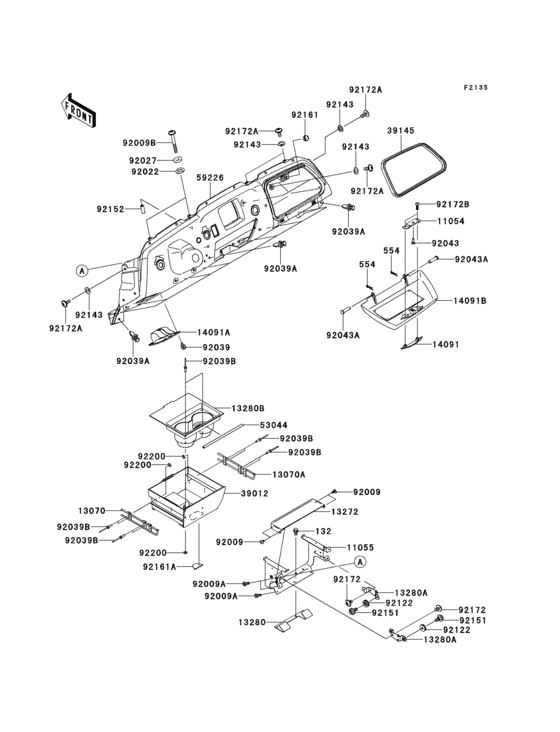

Front box Diagram Kawasaki KRF750 Teryx 750 FI 4X4 Sport
- Model code
- KRF750SDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Colored Plastic Sunrise Yellow (40E)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 FI 4X4 Sport
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6X |
132BB0610 |
from US $1.11 |
||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
11054
|
11054
11054-1789 BRACKET |
11054-1789 |
US $6.02 |
||
|
11055
|
11055
11055-0811 BRACKET,CUP HOLDER |
11055-0811 |
US $34.52 |
||
|
13070
|
13070
13070-0098 GUIDE,CUP HOLDER,LH |
13070-0098 |
from US $22.71 |
||
|
13070A
|
13070A
13070-0099 GUIDE,CUP HOLDER,RH |
13070-0099 |
from US $22.71 |
||
|
13272
|
13272
13272-0446 PLATE,CUP HOLDER |
13272-0446 |
US $4.63 |
||
|
13280
|
13280
13280-0210 HOLDER,LWR |
13280-0210 |
US $17.62 |
||
|
13280A
|
13280A
13280-0289 HOLDER |
13280-0289 |
from US $7.16 |
||
|
13280B
|
13280B
13280-0296 HOLDER |
13280-0296 |
US $12.02 |
||
|
14091
|
14091
14091-0700-6Z COVER,STORAGE CAP,F.B |
14091-0700-6Z |
US $7.89 |
||
|
14091A
|
14091A
14091-0702-6Z COVER,LH,F.BLACK |
14091-0702-6Z |
US $7.76 |
||
|
14091B
|
14091B
14091-0985-6Z COVER,STORAGE,F.BLACK |
14091-0985-6Z |
US $33.32 |
||
|
39012
|
39012
39012-0024-6Z CASE-STORAGE,F.BLACK |
39012-0024-6Z |
US $23.34 |
||
|
39145
|
39145
39145-0029 TRIM-SEAL,L=940 |
39145-0029 |
US $20.15 |
||
|
53044
|
53044
53044-0043 TRIM,L=256.6 |
53044-0043 |
from US $7 |
||
|
59226
|
59226
59226-0019-6Z PANEL-CONTROL,F.BLACK |
59226-0019-6Z |
US $177.28 |
||
|
92009
|
92009
92009-1155 SCREW,TAPPING,4X8 |
92009-1155 |
from US $2.38 |
||
|
92009A
|
92009A
92009-1444 SCREW |
92009-1444 |
from US $2.38 |
||
|
92009B
|
92009B
92009-1829 SCREW,6X56 |
92009-1829 |
from US $1.43 |
||
|
92022
|
92022
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1964 COLLAR,L=4.7 |
92027-1964 |
from US $3.73 |
||
|
92039
|
92039
92039-0046 RIVET |
92039-0046 |
from US $1.87 |
||
|
92039A
|
92039A
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
US $1.51 |
||
|
92039B
|
92039B
92039-1231 KHI RIVET-3 REQUIRED |
92039-1231 |
from US $1.11 |
||
|
92043
|
92043
92043-0138 PIN |
92043-0138 |
from US $4.35 |
||
|
92043A
|
92043A
92043-0164 PIN,6X23 |
92043-0164 |
from US $2.02 |
||
|
92122
|
92122
92122-0024 ROLLER |
92122-0024 |
from US $2.17 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92151
|
92151
92151-1703 BOLT,6MM |
92151-1703 |
from US $2.38 |
||
|
92152
|
92152
92152-0777 COLLAR,7.95X15.88X40 |
92152-0777 |
US $6.89 |
||
|
92161
|
92161
92161-0568 DAMPER |
92161-0568 |
US $1.63 |
||
|
92161A
|
92161A
92161-0653 DAMPER,CUP HOLDER |
92161-0653 |
from US $1.87 |
||
|
92172
|
92172
92172-0005 SCREW, 6X10 |
92172-0005 |
US $2.99 |
||
|
92172A
|
92172A
92172-0236 SCREW,6X16 |
92172-0236 |
from US $0.32 |
||
|
92172B
|
92172B
92172-0347 SCREW,TAPPING,4X16 |
92172-0347 |
from US $0.78 |
||
|
92200
|
92200
92200-1251 WASHER,3.5X8X1 |
92200-1251 |
from US $0.79 |
||
