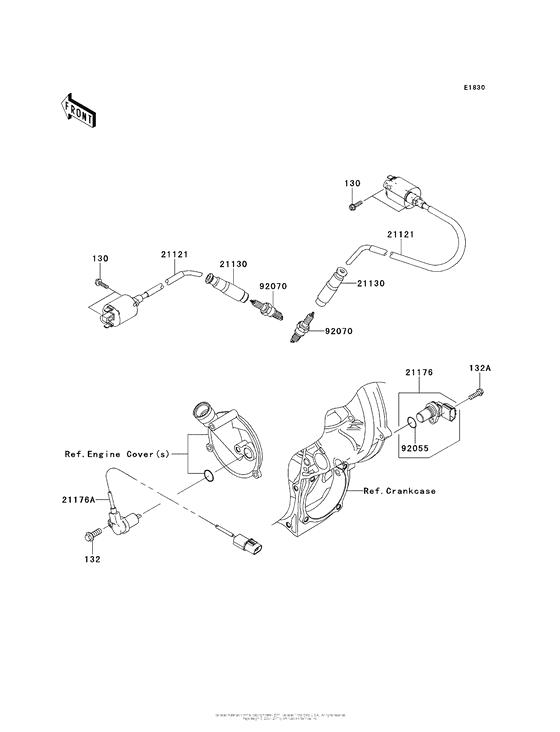

Ignition System Diagram Kawasaki KRF750 Teryx 750 FI 4X4 Sport
- Model code
- KRF750SDF
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 FI 4X4 Sport
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0518 BOLT-FLANGED |
130BB0518 |
from US $0.95 |
||
|
132
|
132
132BA0822 BOLT-FLANGED-SMALL |
132BA0822 |
from US $1.27 |
||
|
132A
|
132A
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
21121
|
21121
21121-0045 COIL-IGNITION |
21121-0045 |
from US $48.37 |
||
|
21130
|
21130
21130-1071 Cap-spark plug |
21130-1071 |
from US $24.09 |
||
|
21176
|
21176
21176-1104 SENSOR,SPEED |
21176-1104 |
from US $108.20 |
||
|
21176A
|
21176A
21176-1109 SENSOR,REVERSE |
21176-1109 |
from US $73.09 |
||
|
92055
|
92055
92055-1718 RING-O |
92055-1718 |
from US $1.68 |
||
|
92070
|
92070
92070-1209 SPARK PLUG, CR7E(NGK) |
92070-1209 |
from US $9 |
